Frequently Asked Questions

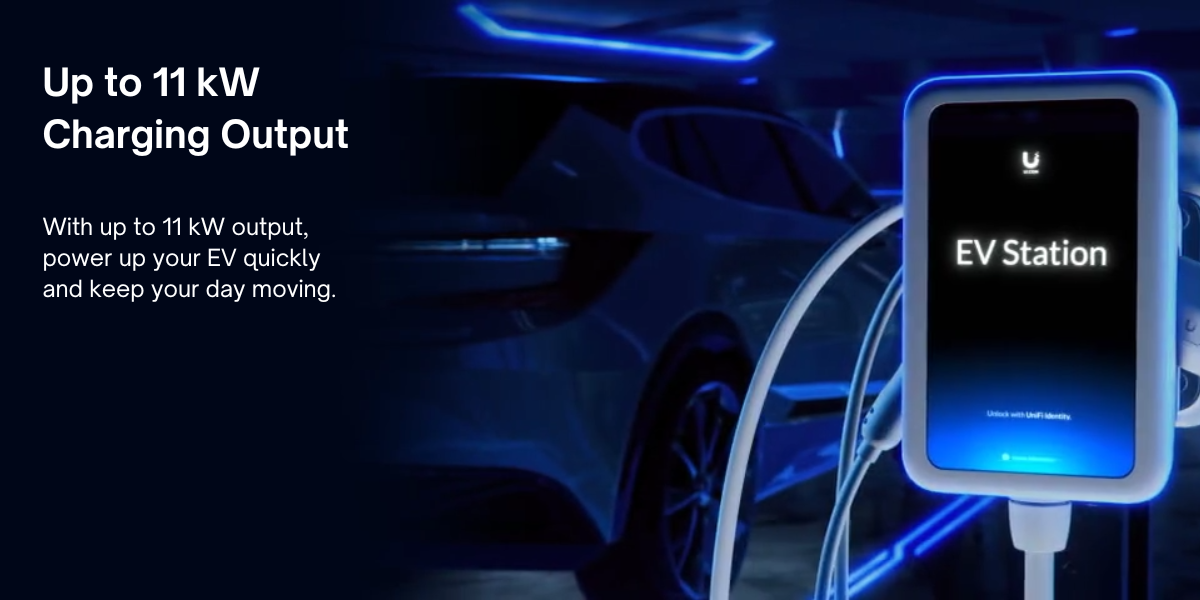

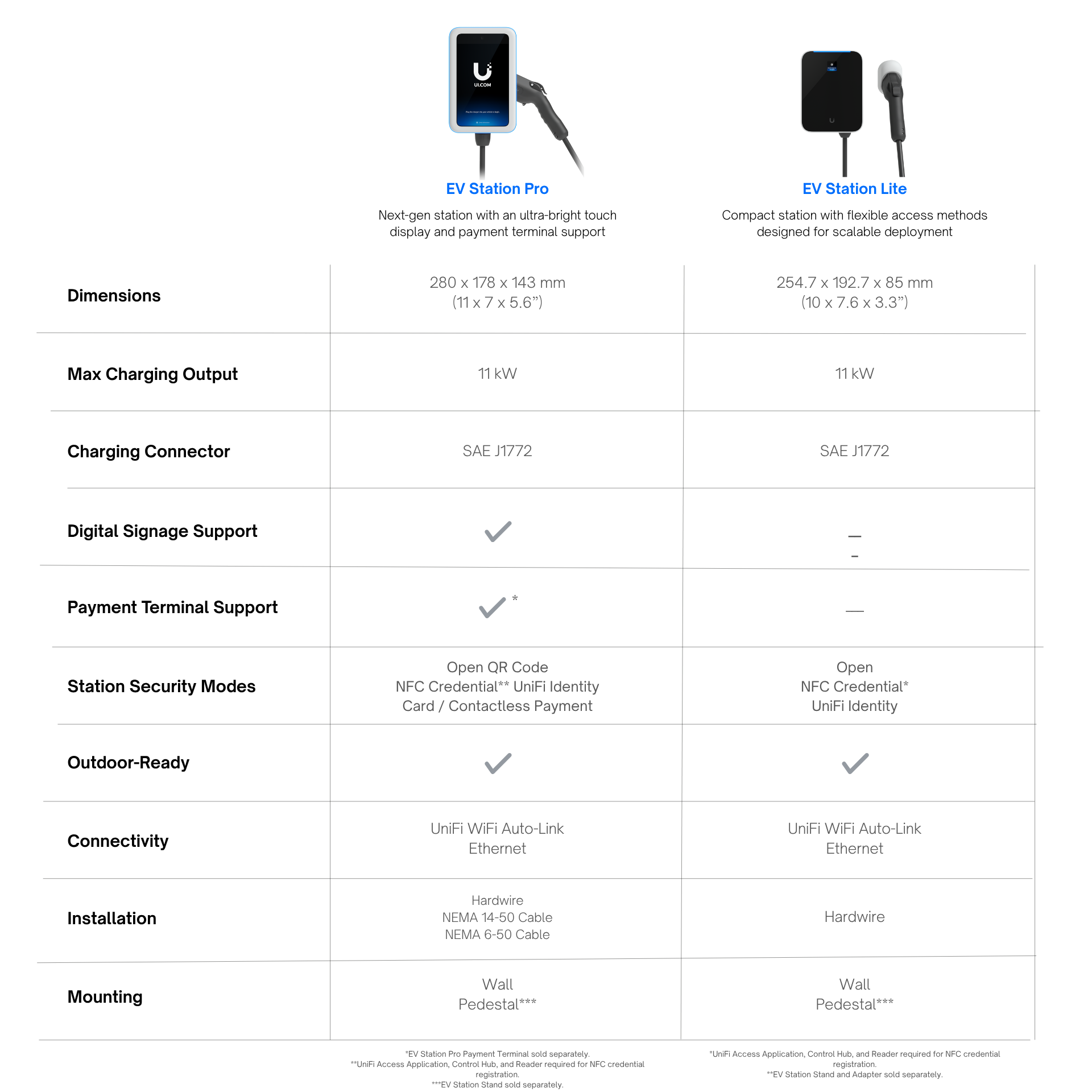

Currently, EV Stations have an SAE J1772 connector. Vehicles with an NACS (Tesla) connector can charge using an adapter.
Any certified electrician can install an EV Station by following its installation guide. EV Stations can be hardwired, and the EV Station Pro additionally supports plug-in installation with one of the included NEMA 14-50 and 6-50 cables.

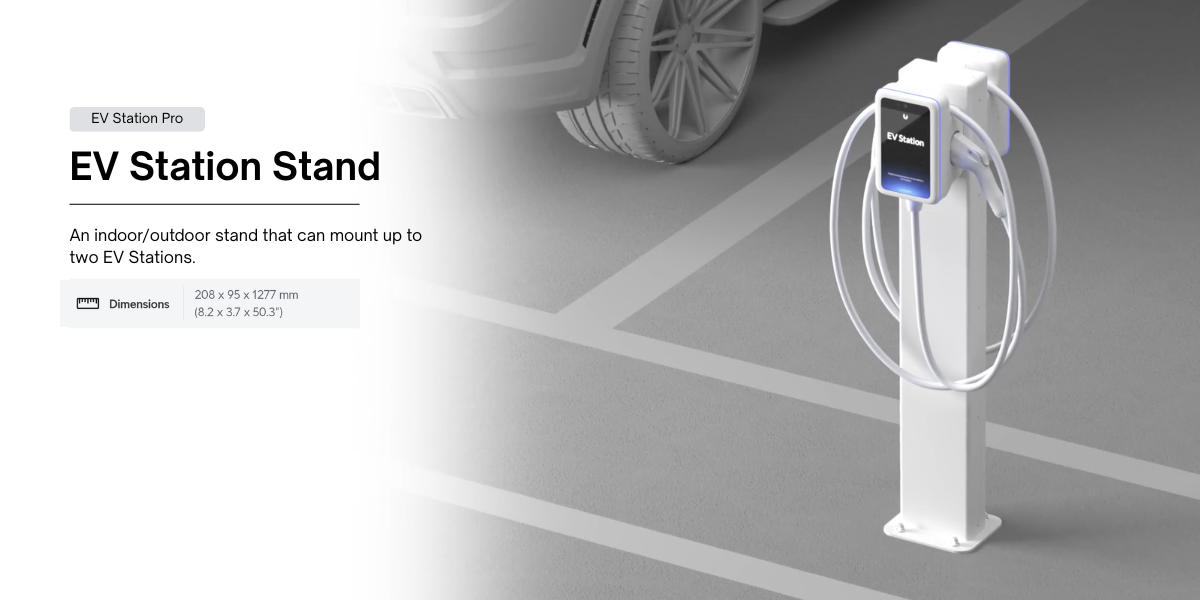

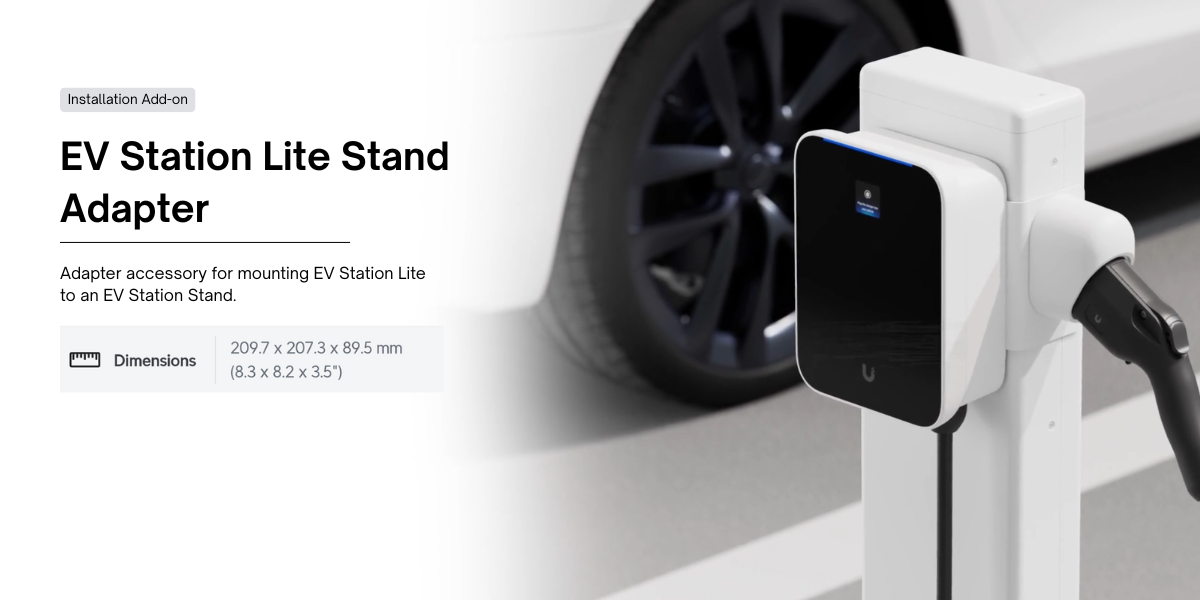

The custom-designed, stainless steel EV Station Stand mounts up to two EV Stations with interior cable routing for a clean aesthetic.
UniFi EV Charging is managed with UniFi Connect, our modern Enterprise of Things platform.

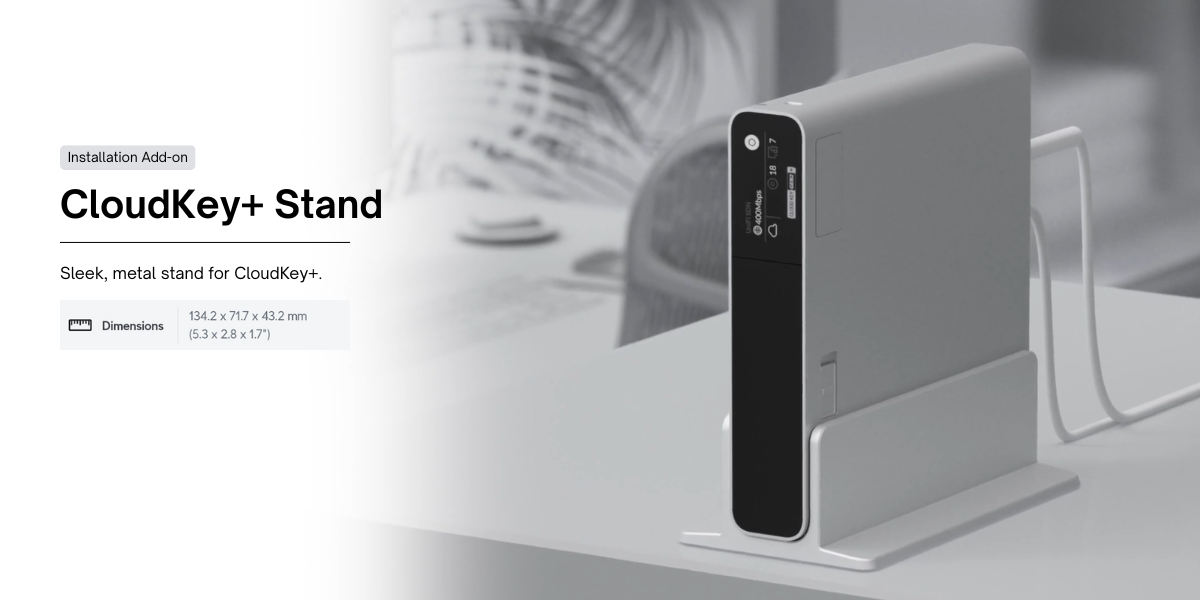

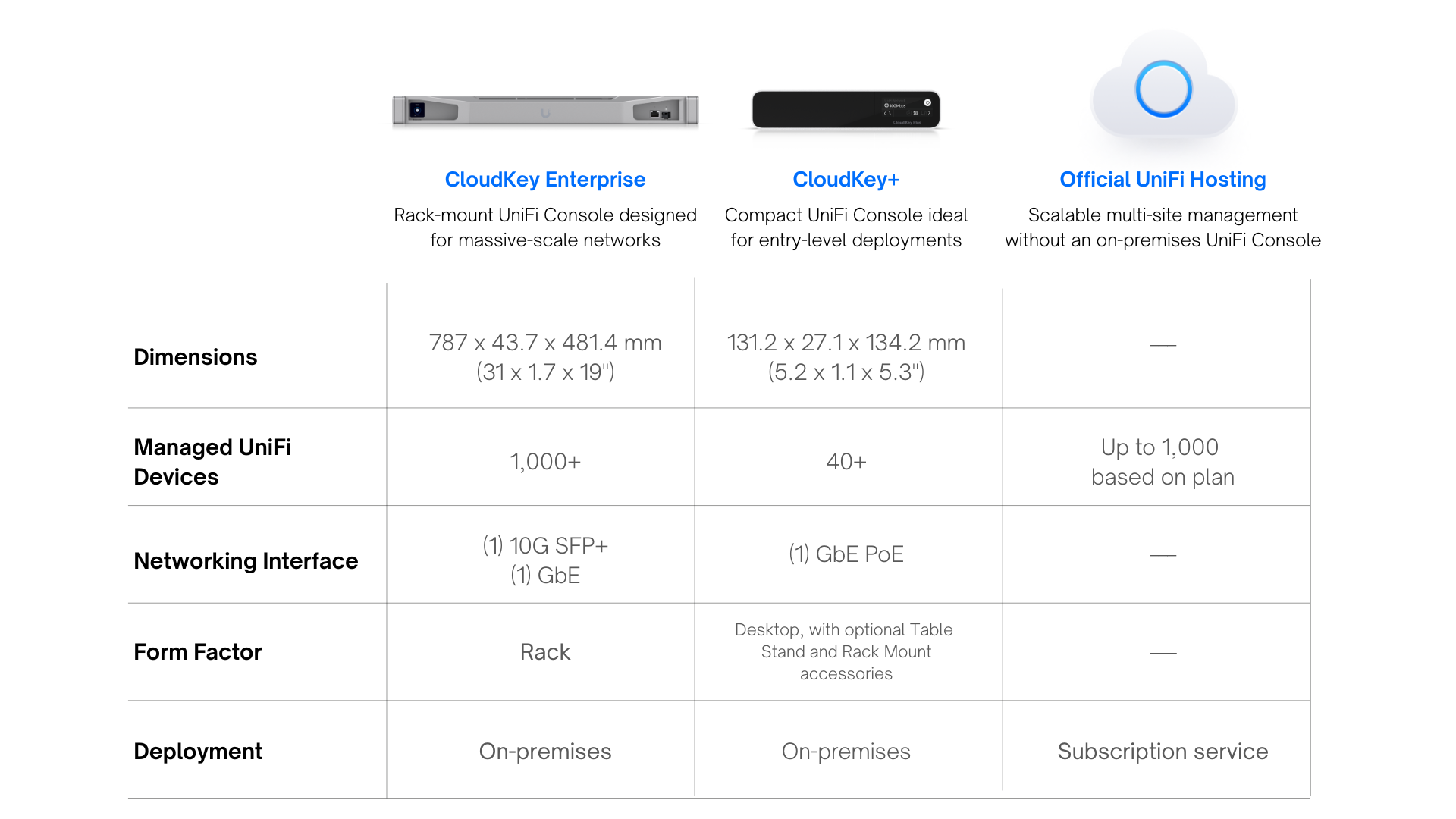

In addition to your EV Stations, you will need a compatible UniFi Console. We recommend a UniFi Cloud Gateway, such as the Dream Machine Pro or Special Edition, to leverage the built-in internet gateway and firewall for optimal performance. A UniFi CloudKey+ can be used for installations that don’t use UniFi Network. A hard disk drive (HDD) is required to store media content for EV Station digital signage applications.
To manage an EV Station with UniFi Connect, it must be connected to the same network as the UniFi Cloud Gateway or Console. EV Stations support wired Ethernet connection, and can also wirelessly connect to an existing UniFi WiFi network.
While charging is available on unmanaged EV Stations, we recommend management with UniFi Connect for a complete experience, including access to the latest updates and secure remote management.
Additionally, within UniFi Connect, admins can:
-
Configure user authentication for EV charging
-
Set max current
-
Set charge scheduling
-

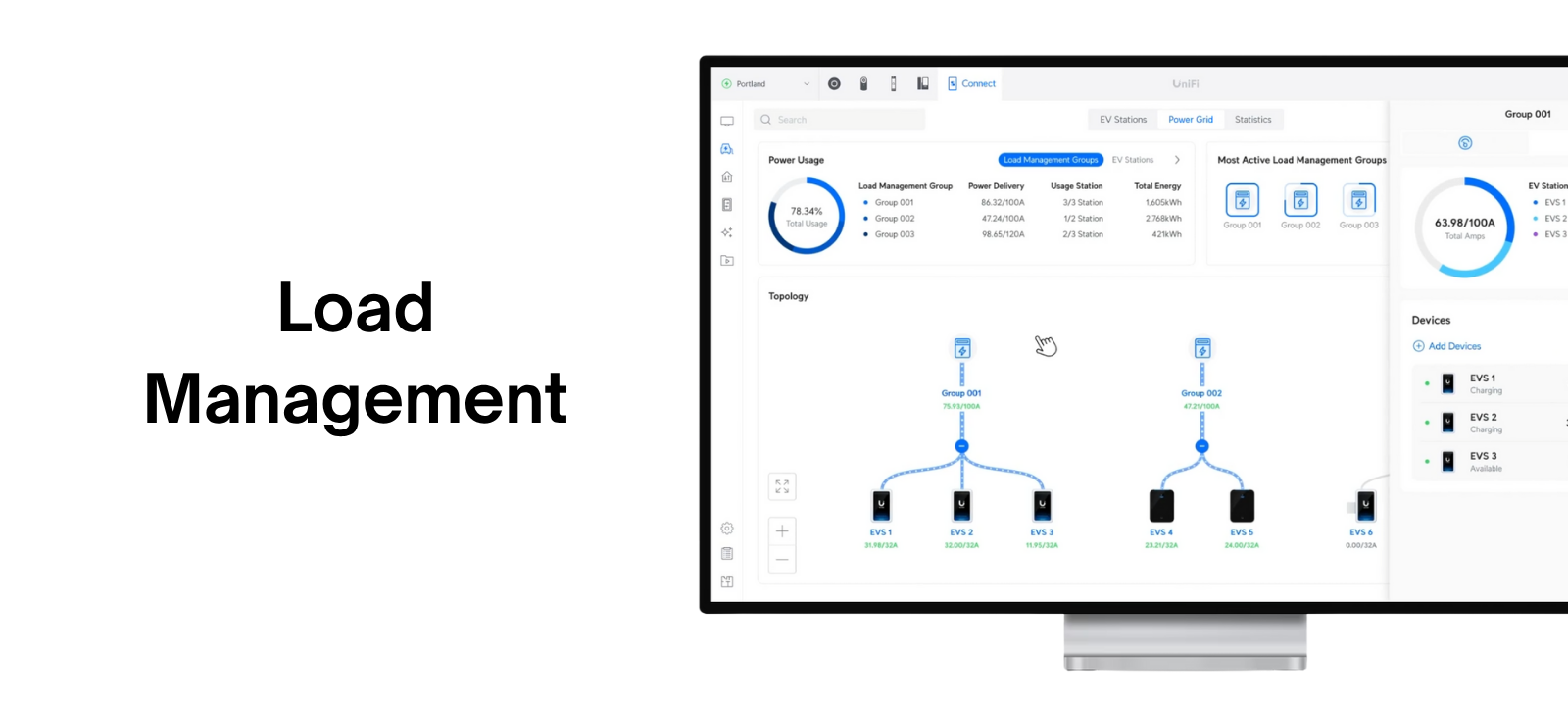

Configure load management
-

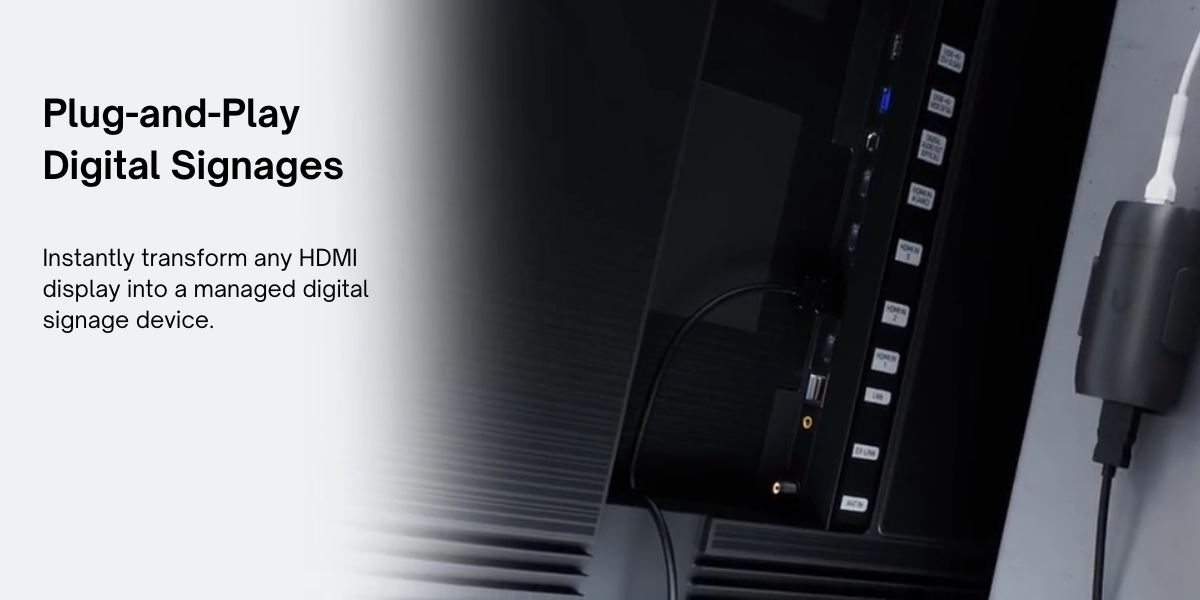

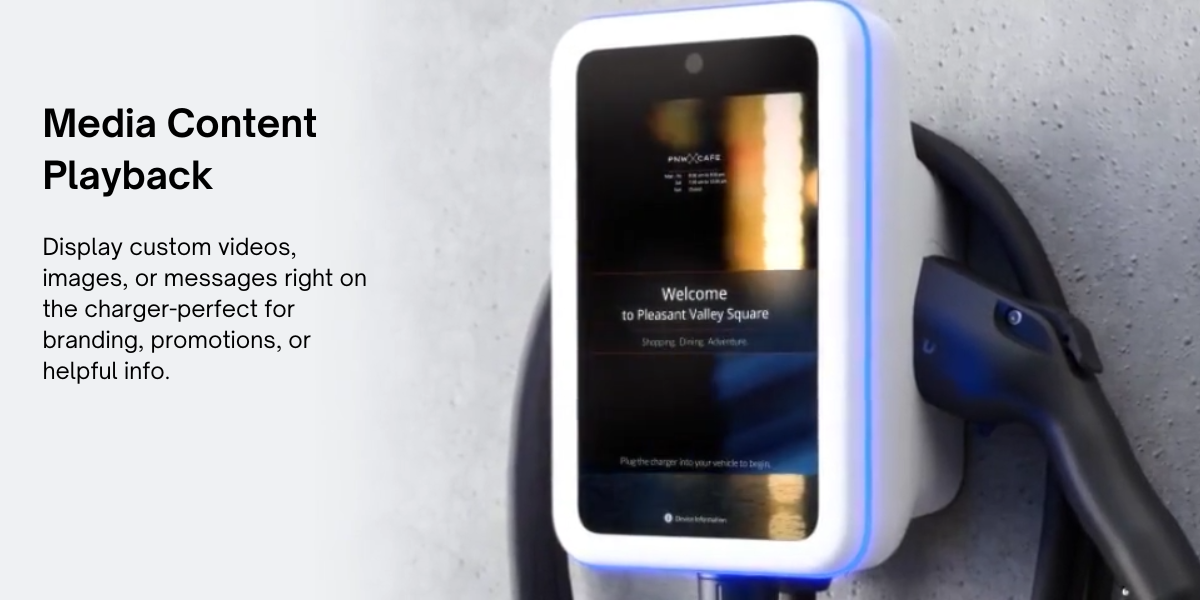

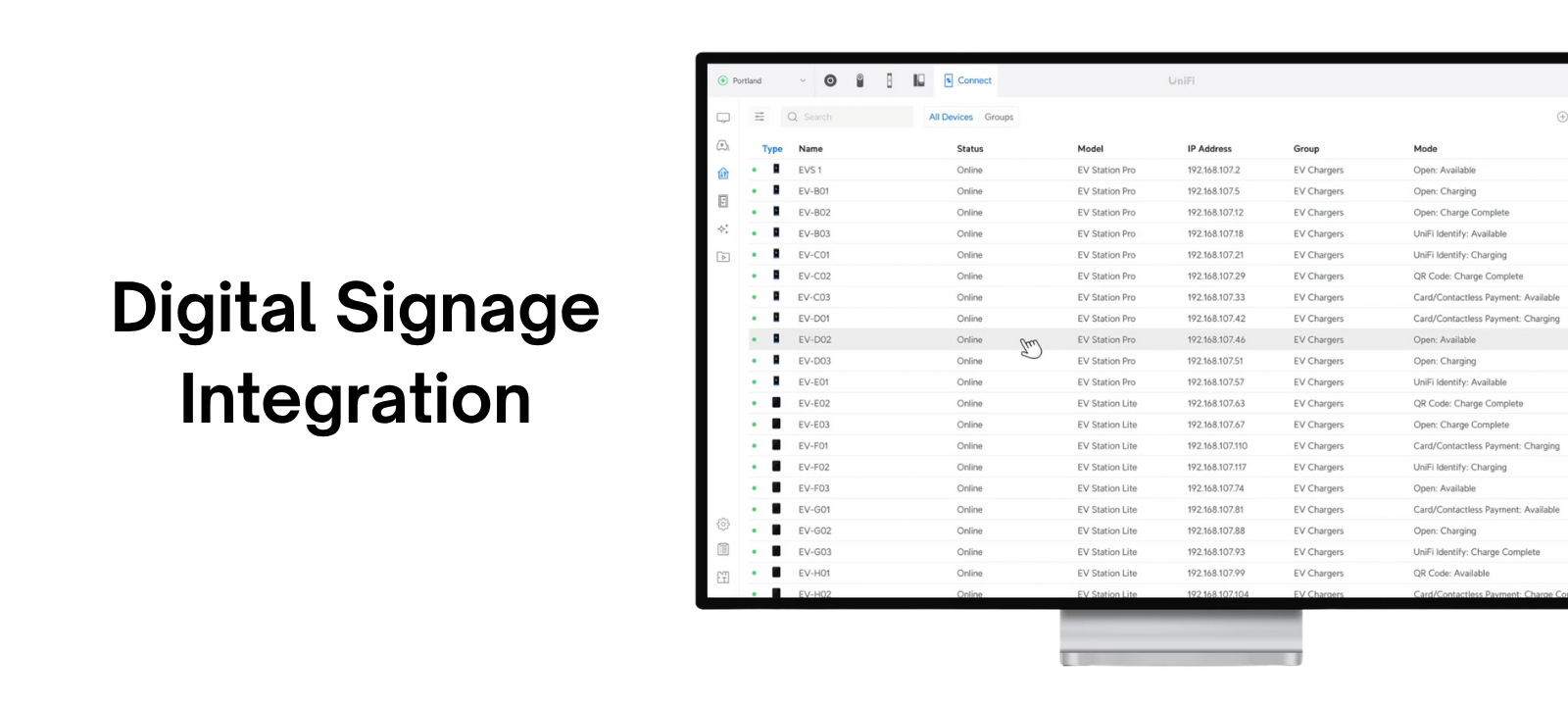

Deploy digital signage content to compatible EV Stations
-
View charging history and statistics
Admins can remotely enable or disable EV Stations for all users.

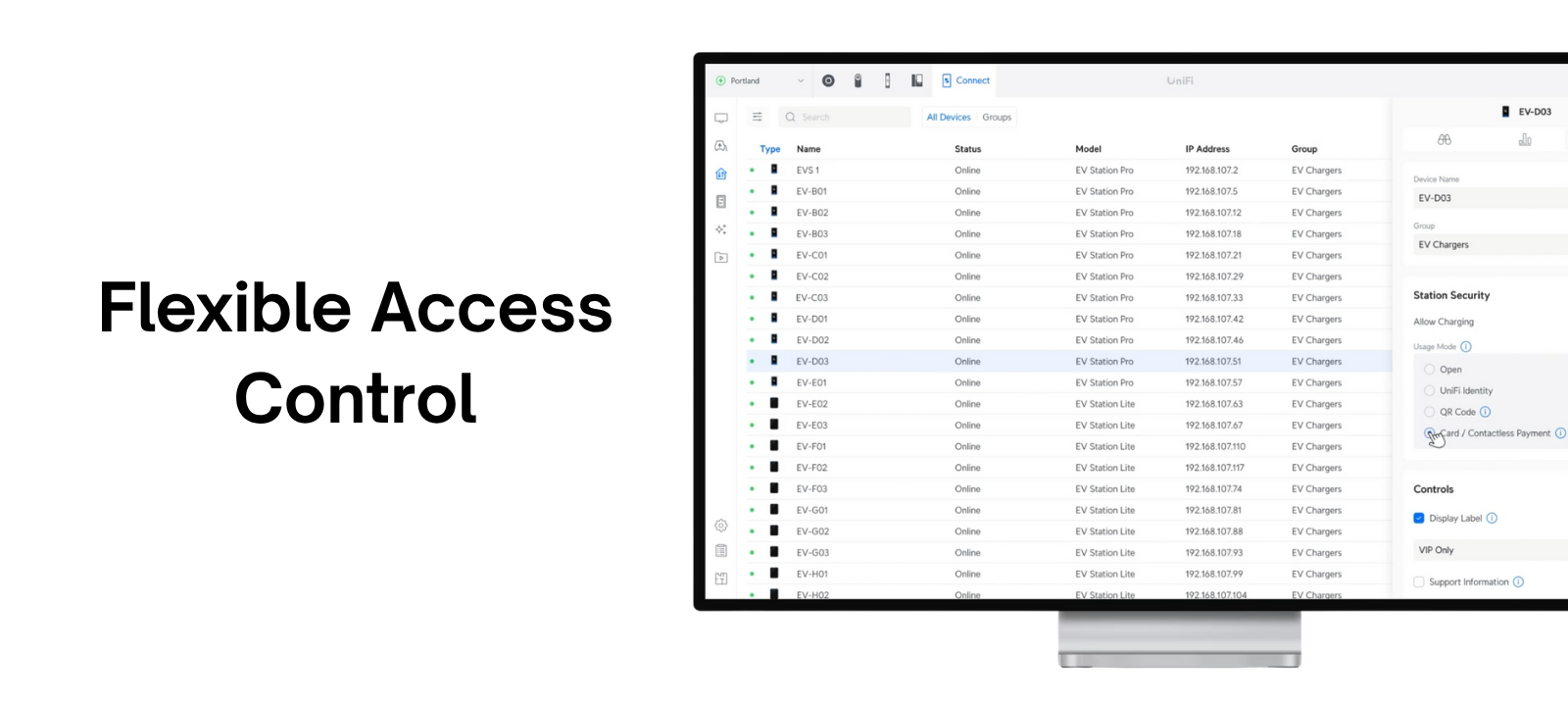

For installations that require granular access control, admins have the following options to authenticate users for EV charging:
-
QR Code: Generated in UniFi Connect, QR codes can be distributed by admins with their preferred method (e.g., print, email) for users to scan with an EV Station’s built-in camera to access EV charging. For example, a hotel can print QR code vouchers so only authorized guests can charge.
-

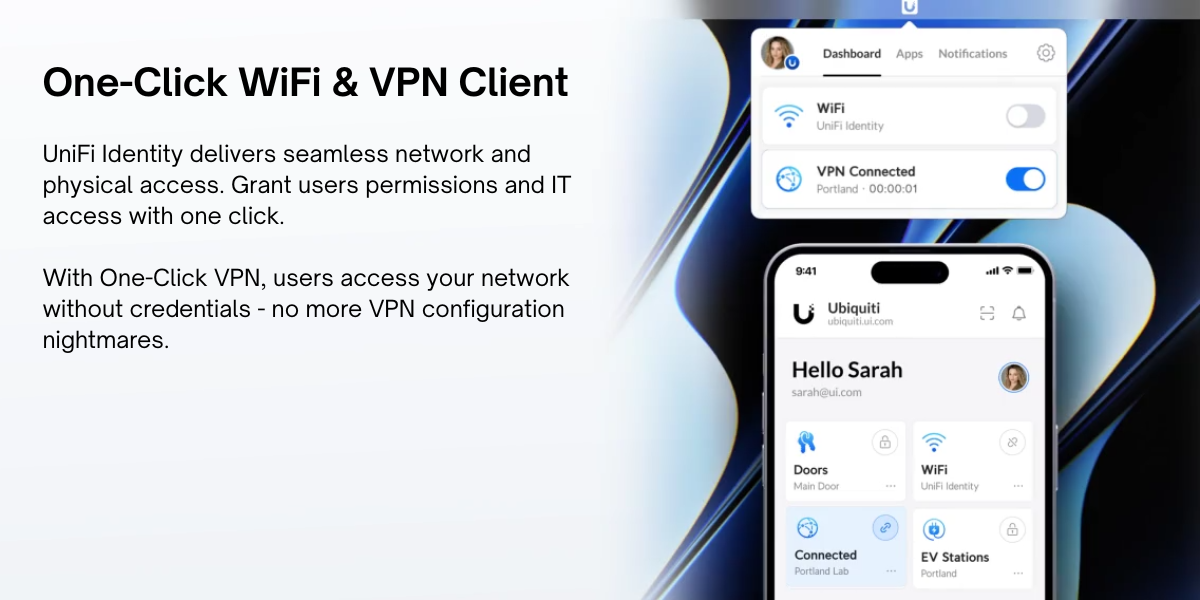

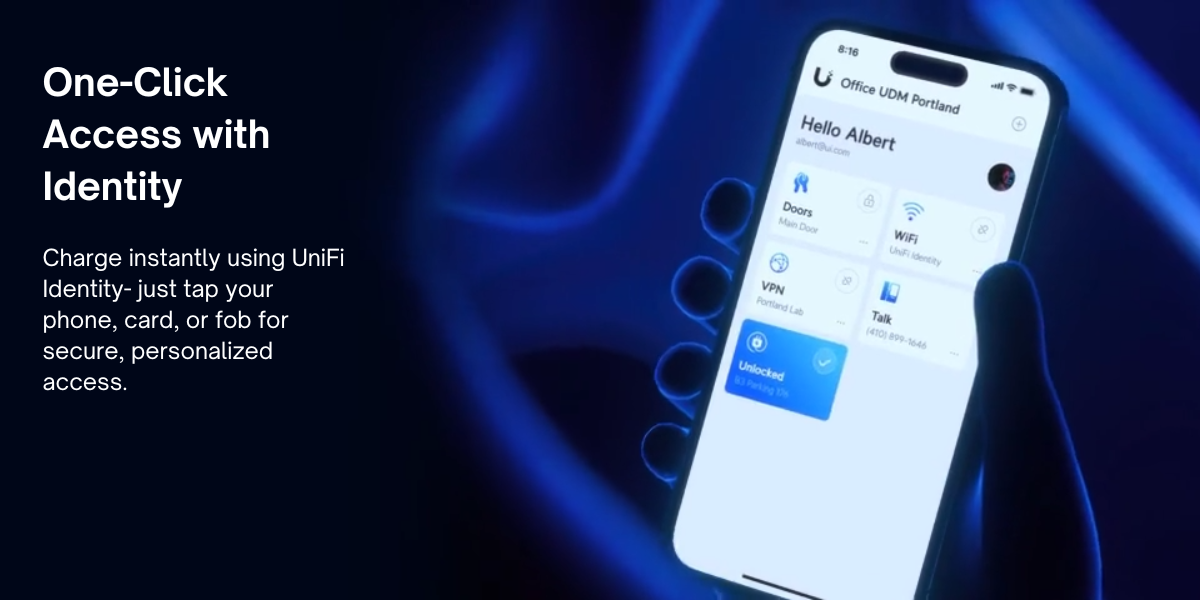

UniFi Identity: Admins can onboard users to UniFi Identity, the subscription-free user management system for UniFi sites, to provision EV Station access through the UniFi Identity mobile app. Once invited, users can unlock an EV Station with a single tap in the UniFi Identity mobile app to start charging.
-
NFC Card: UniFi Access must be running on the same console as UniFi Connect with a Control Hub and Access Reader adopted for NFC card registration.

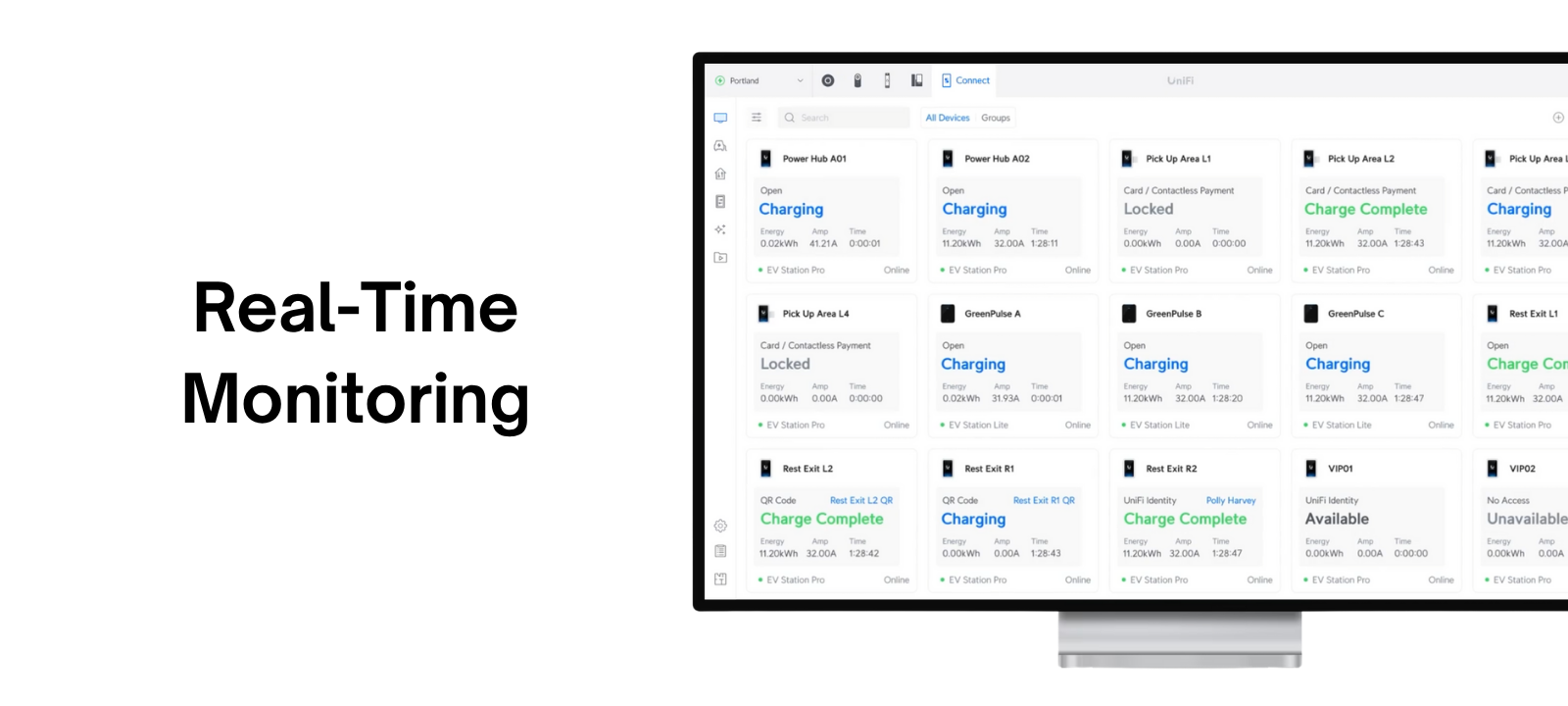

All charging activities are logged and can be reviewed within UniFi Connect, providing admins with comprehensive insights into usage patterns and operational metrics.

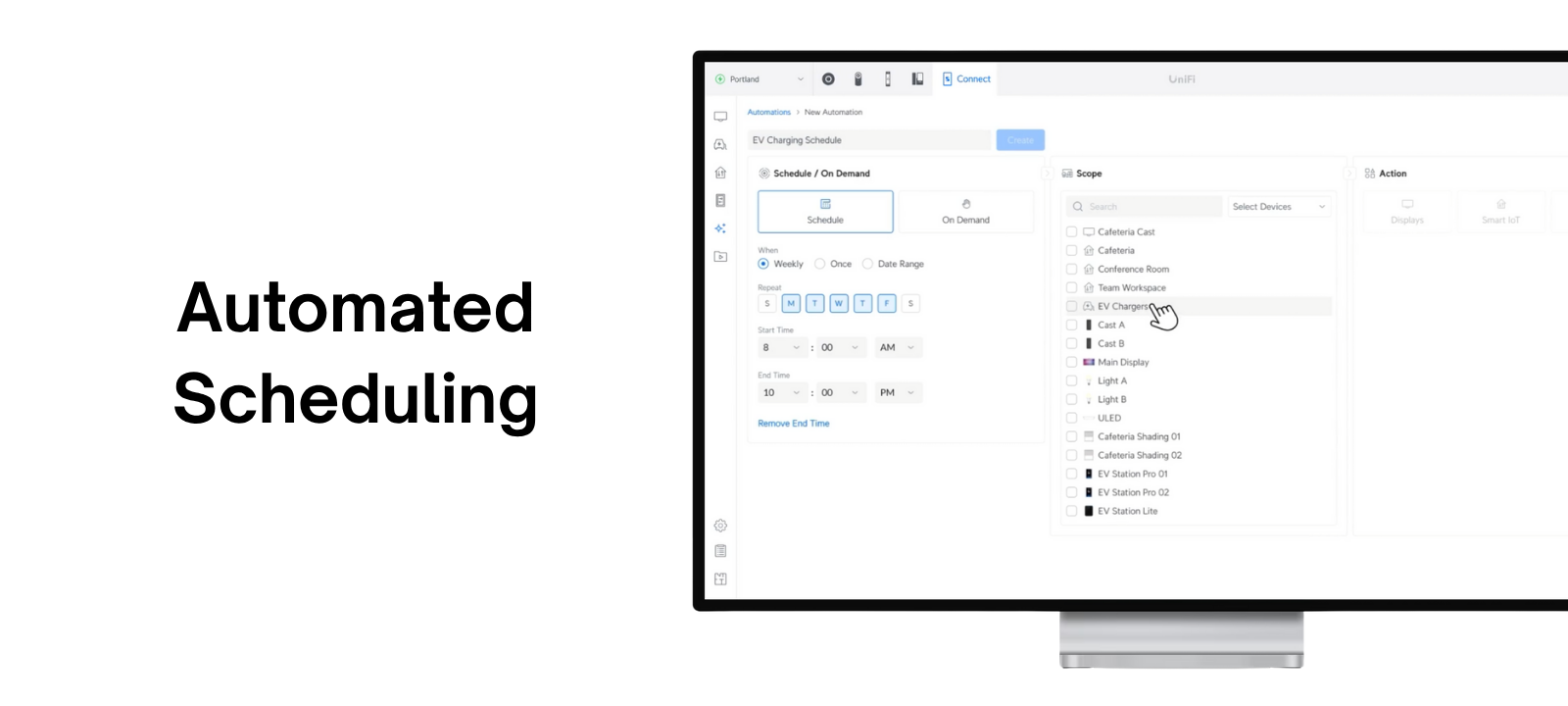

Yes. With UniFi Connect, you can easily schedule when and how your EV Stations are accessible.
For example, you can:
-
Only allow access during certain times to support off-peak charging.
-
Adjust maximum charging output based on time of day to manage electricity costs.
-
Schedule digital signage to align with your organization’s advertising objectives.
Admins can customize whether EV Stations are available for charging when disconnected from the internet.
Yes, compatible EV Stations can be paired with their custom-designed payment terminals to enable charging as a service.





Installation Essentials
Frequently Asked Questions
UniFi Professional A/V is managed with UniFi Connect, our modern Enterprise of Things platform.
In addition to your Professional A/V devices, you will need:
-
A compatible UniFi Console: We recommend a UniFi CloudKey+, such as the Dream Machine Pro or Special Edition, to leverage the built-in internet gateway and firewall for optimal performance. A UniFi Cloud Gateway can be used for installations that don’t use UniFi Network.
-
-
Note: A hard disk drive (HDD) is required to store media content.
-
-
UniFi PoE Switching: We recommend using a UniFi PoE Switch to power and connect your UniFi Connect devices.
Although this Website may be linked to other websites, we are not, directly or indirectly, implying any approval, association, sponsorship, endorsement, or affiliation with any linked website, unless specifically stated herein.
You should carefully review the legal statements and other conditions of use of any website which you access through a link from this Website. Your linking to any other off-site pages or other websites is at your own risk.

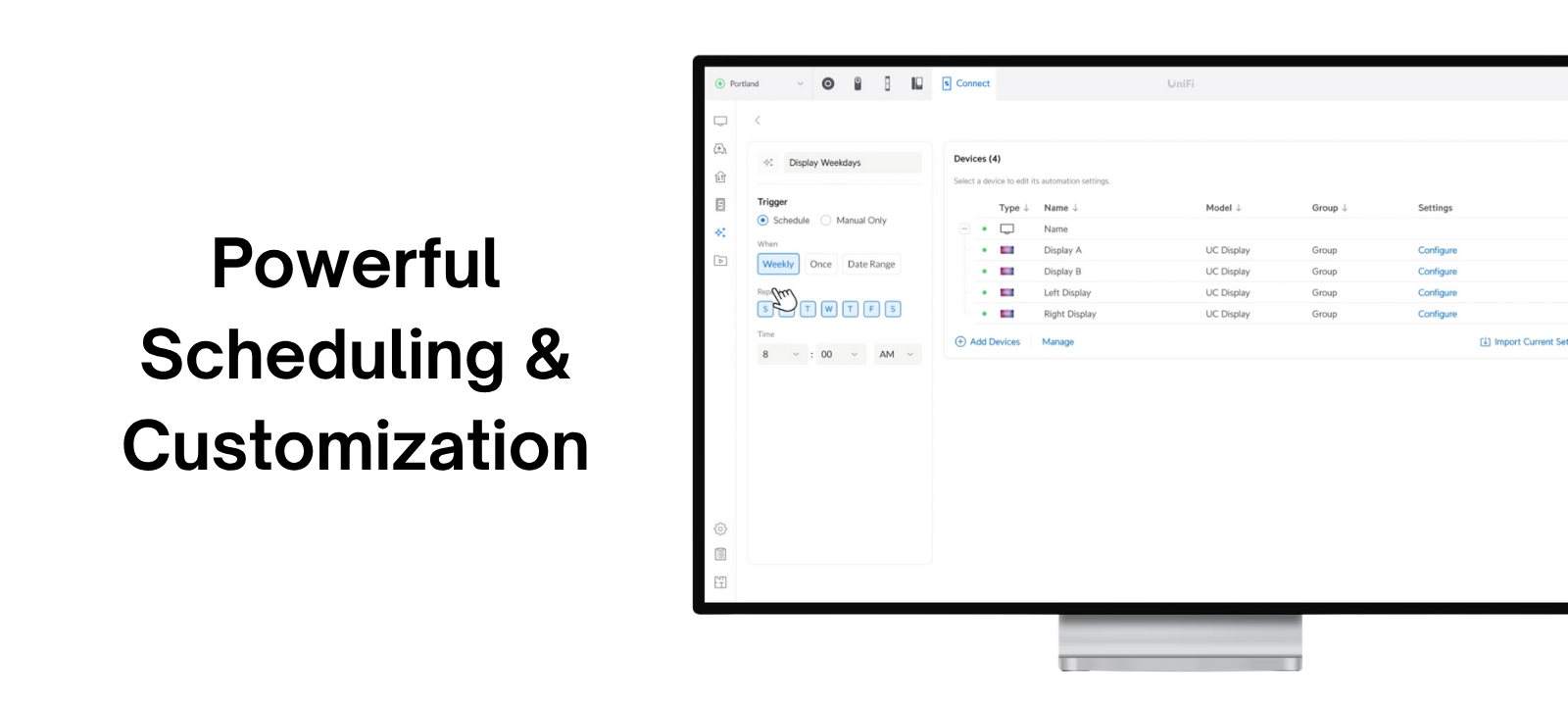

Yes. With UniFi Connect, you can easily schedule when and where content is deployed to your devices.

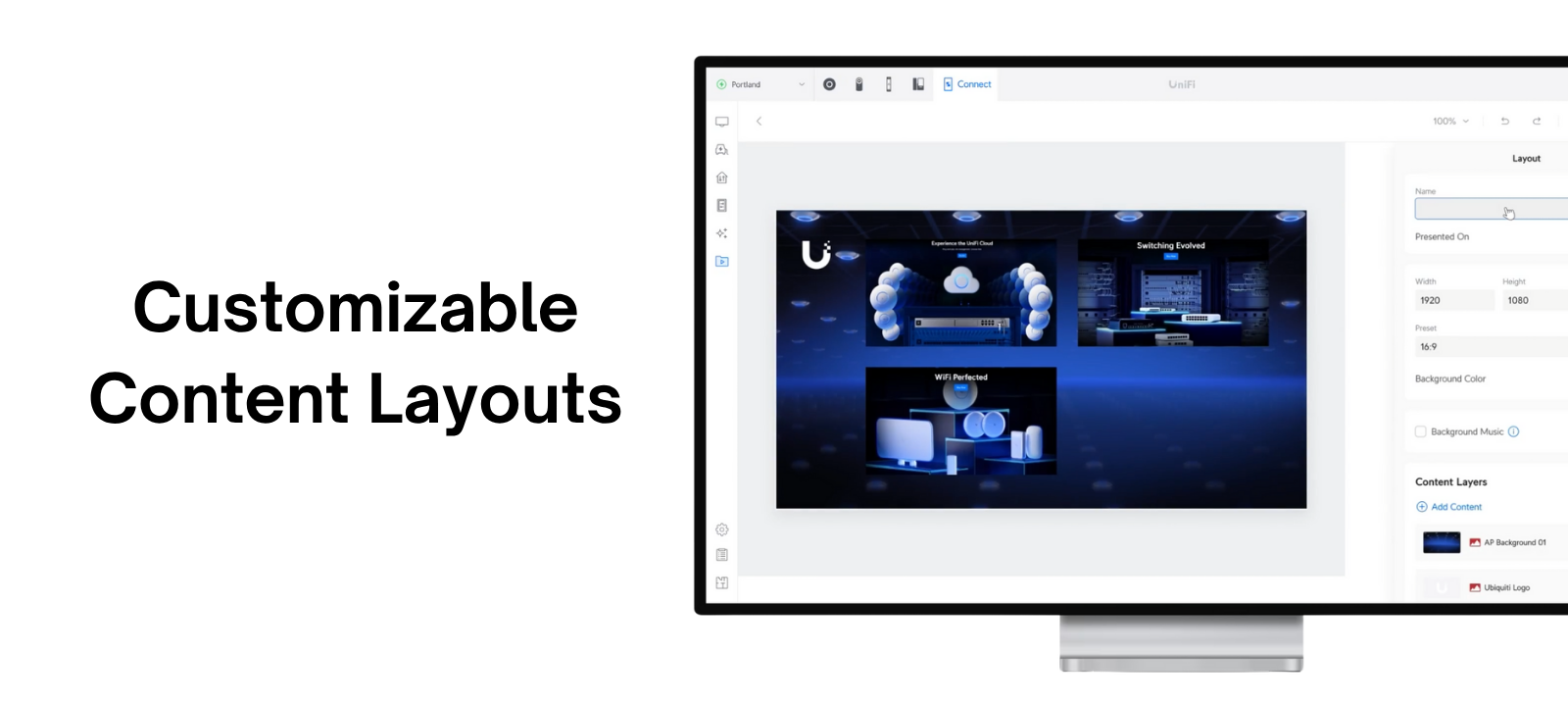

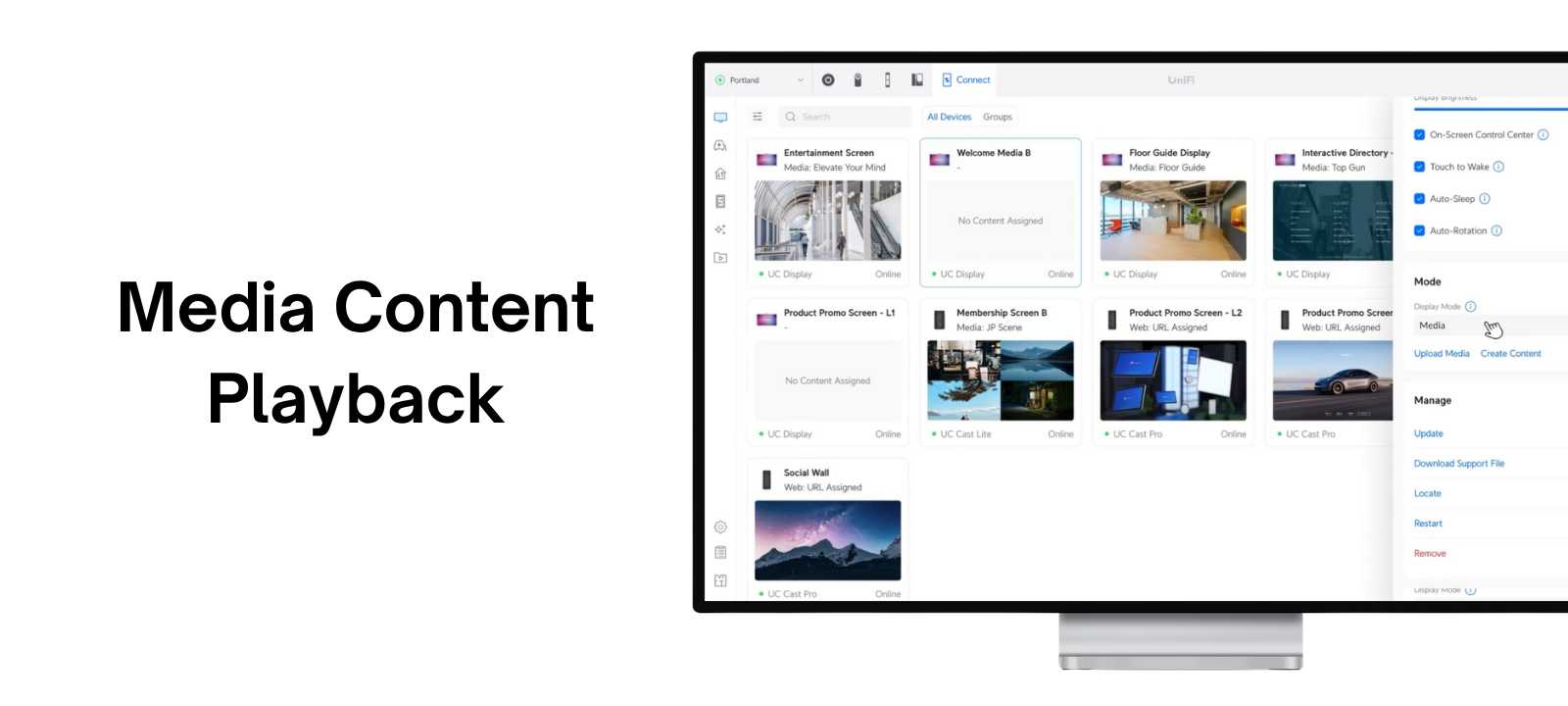

Yes. UniFi Connect offers a powerful Layout Creator for effortless customization of static and dynamic media content. You can customize a canvas with images, videos, playlists, and widgets.
Yes. UniFi Connect offers a powerful Layout Creator for effortless customization of static and dynamic media content. You can customize a canvas with images, videos, playlists, and widgets.




Frequently Asked Questions

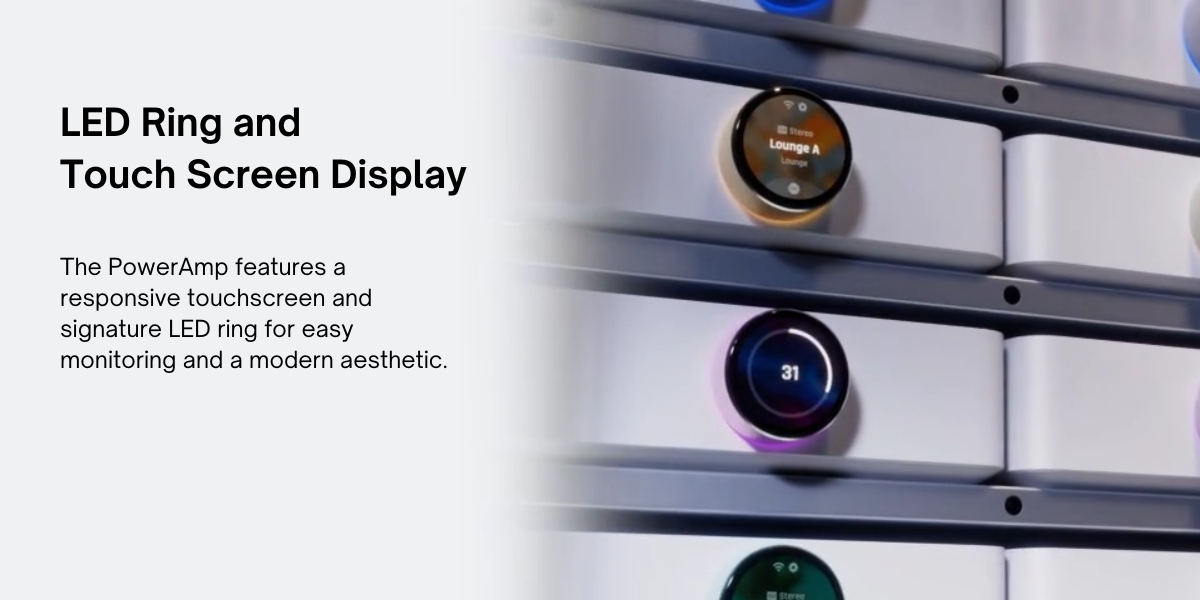

UniFi PowerAmp is a meticulously crafted, insanely powerful amplifier designed to delight even the most discerning audiophiles. Management through the UniFi Play application and seamless integration with UniFi Pro A/V Switching offers a truly converged networking and premium audio experience.
UniFi PowerAmp operates independently with management through the UniFi Play mobile app. No UniFi Console is required.
UniFi PowerAmp is designed to be flexibly placed on any flat surface. Additionally, with 2U of vertical space, a rack shelf can fit two UniFi PowerAmps side-by-side.
UniFi PowerAmp functions as an integrated amplifier without the need for a preamplifier and is designed with a plug-and-play experience. Control your audio effortlessly through the analog inputs or network streaming with Apple AirPlay and Spotify Connect. Need to expand audio coverage? No problem - simply add more UniFi PowerAmps and create groups for multi-zone audio control.

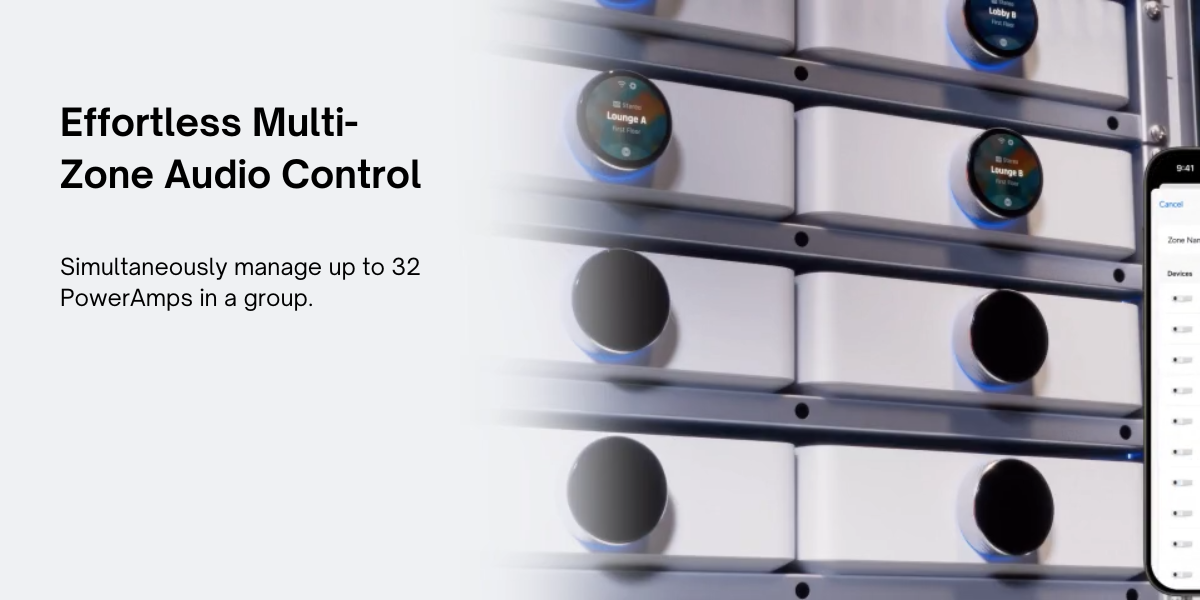

Up to 32 UniFi PowerAmps can be grouped for simultaneous control, with an unlimited number of groups available per audio space.
UniFi PowerAmp provides 130 W per channel at 8 ohms, or 260 W per channel at 4 ohms.
By wiring passive speakers in parallel, UniFi PowerAmp can support two 8 ohm passive speakers wired in parallel to a single channel (4 ohm load).












Installation Essentials
Power Tech Innovation




Cabling Excellence

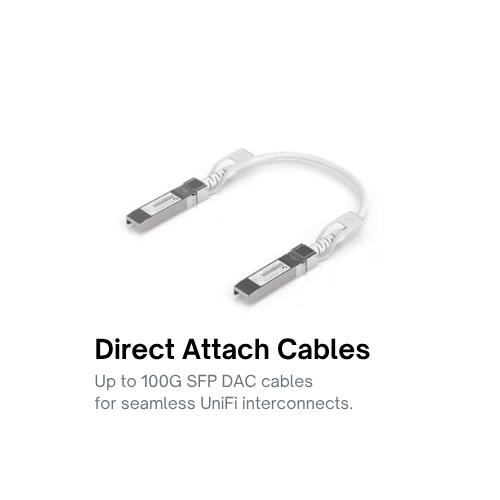

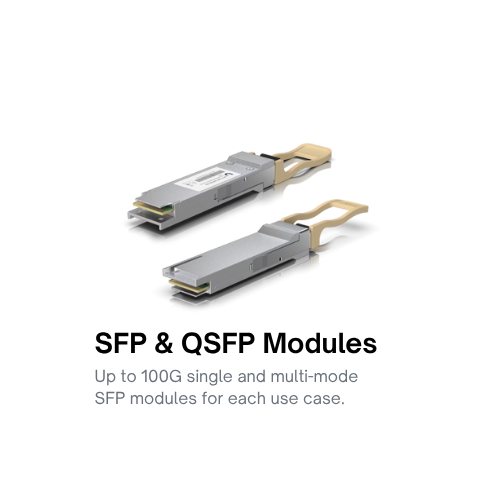

SFP Fiber & Optics




Adapter Solutions

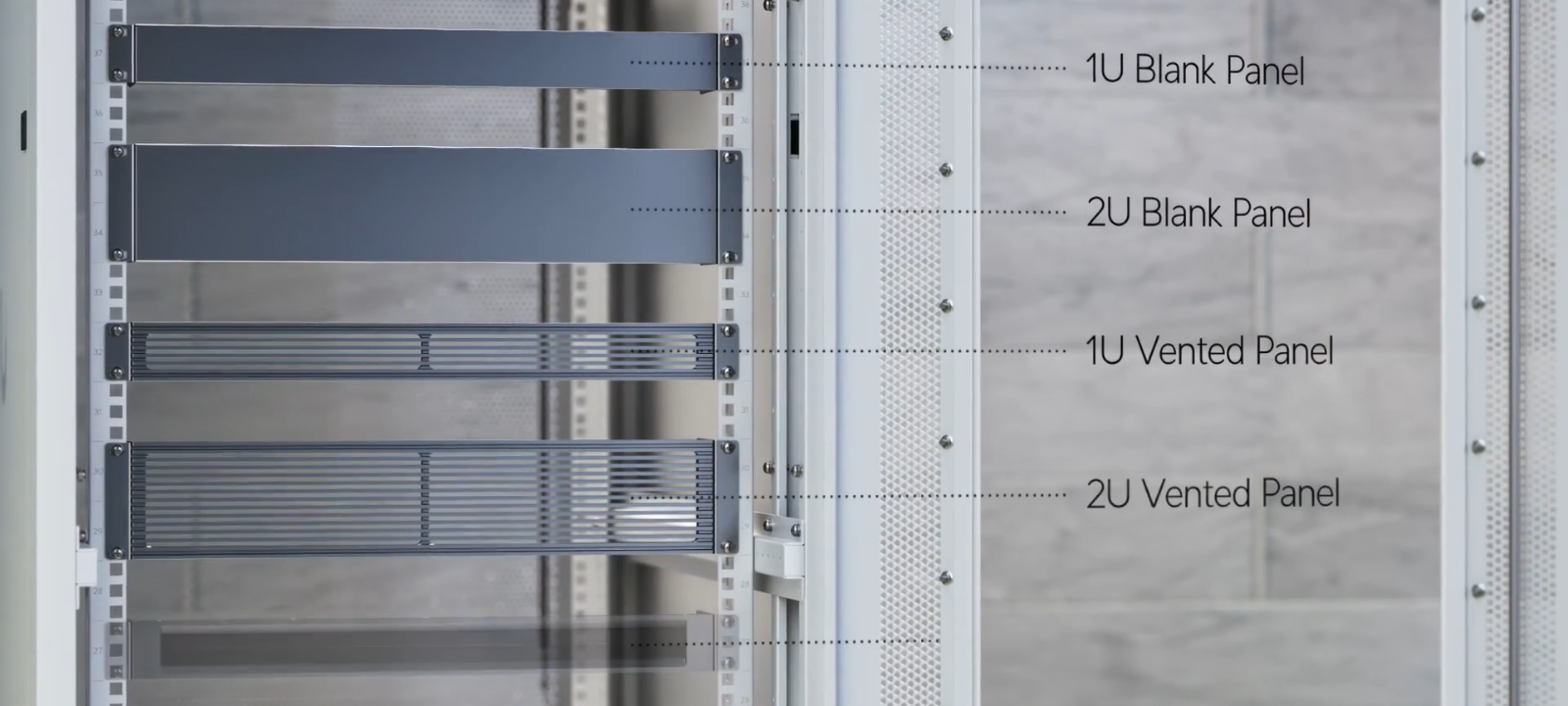

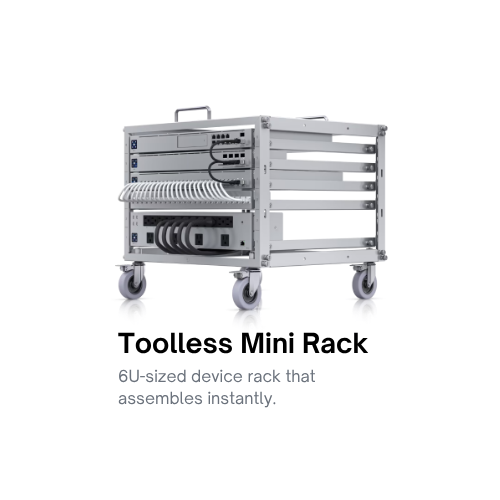

Rack Designs





Adapter Solutions

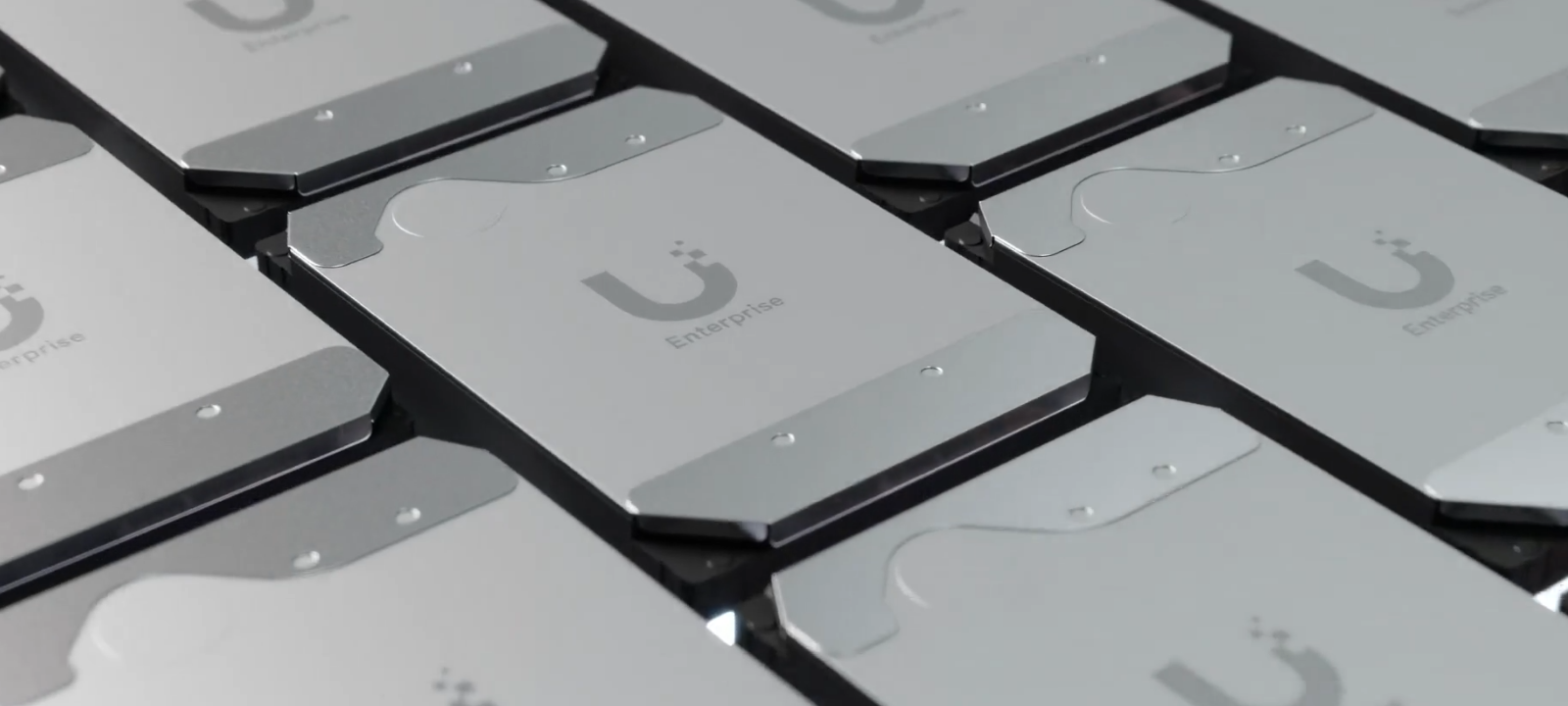

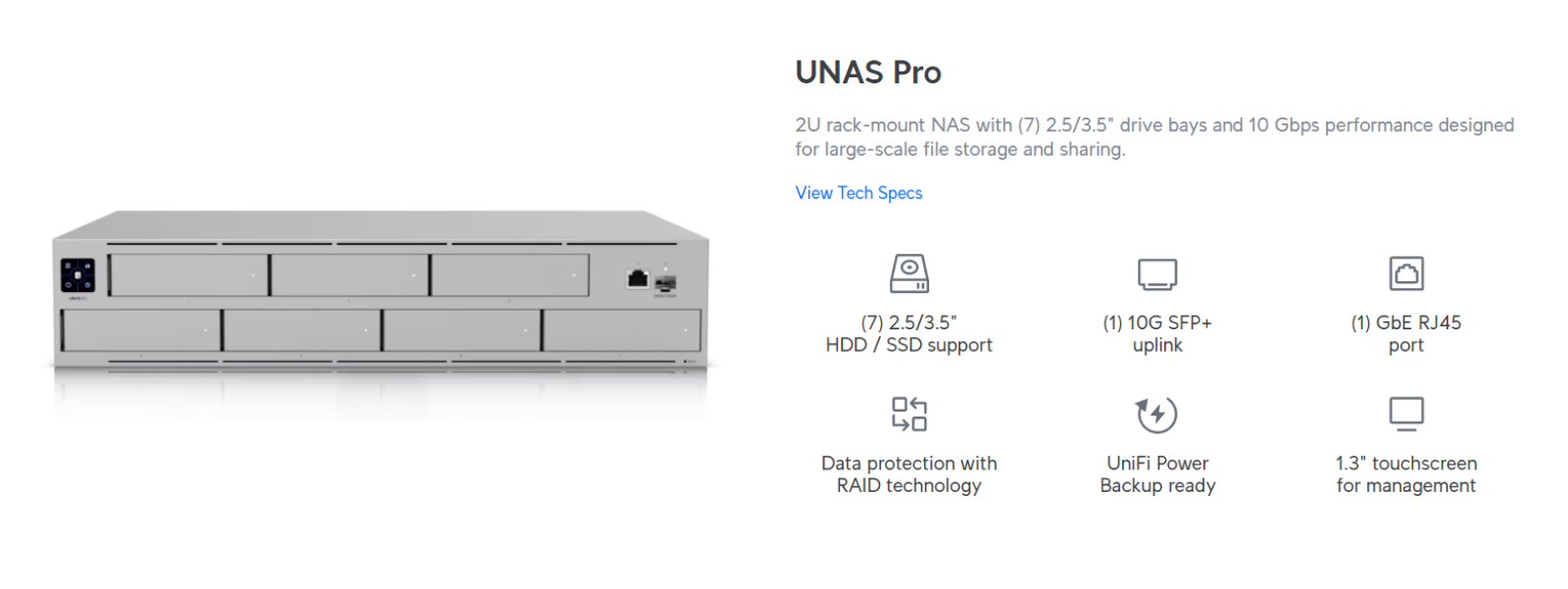

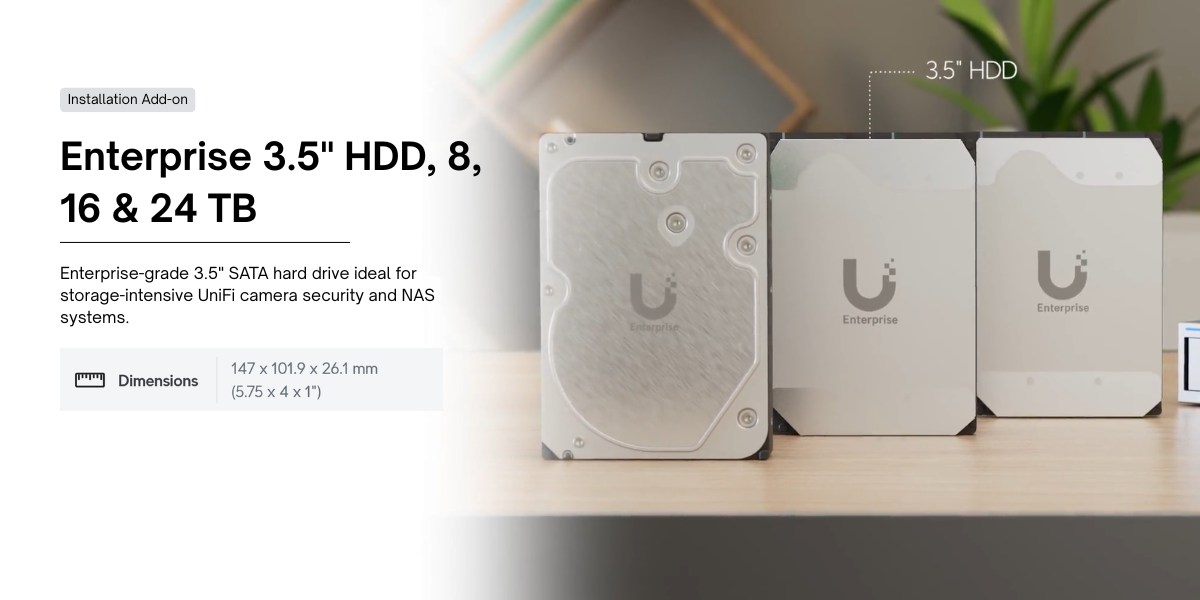

Enterprise Grade Storage
