Ubiquiti Enterprise

Enterprise Fortress Gateway
Gateway Enterprise

ENTERPRISE FORTRESS GATEWAY

Designed for Massive Scale

Effortlessly manage 500+ Unifi devices and 5000+ clients

25 Gbps Performance

Seamlessly balance WANs and high-capacity switching

VRRP High Availability

Like a second system in Shadow Mode to minimize network downtime

Built for Secure Routing

Deliver over 12 Gbps of routing throughput with full IPS security

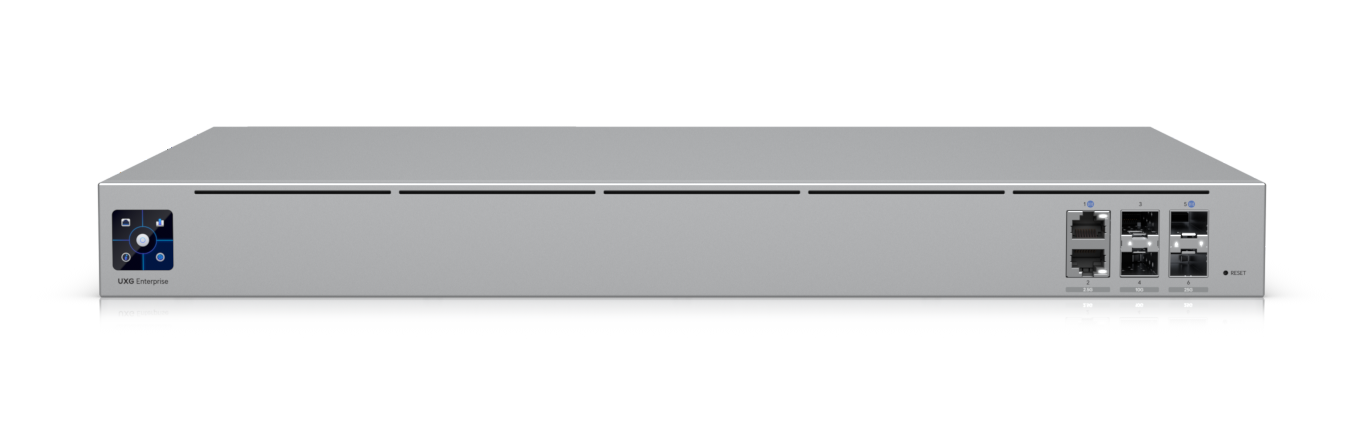

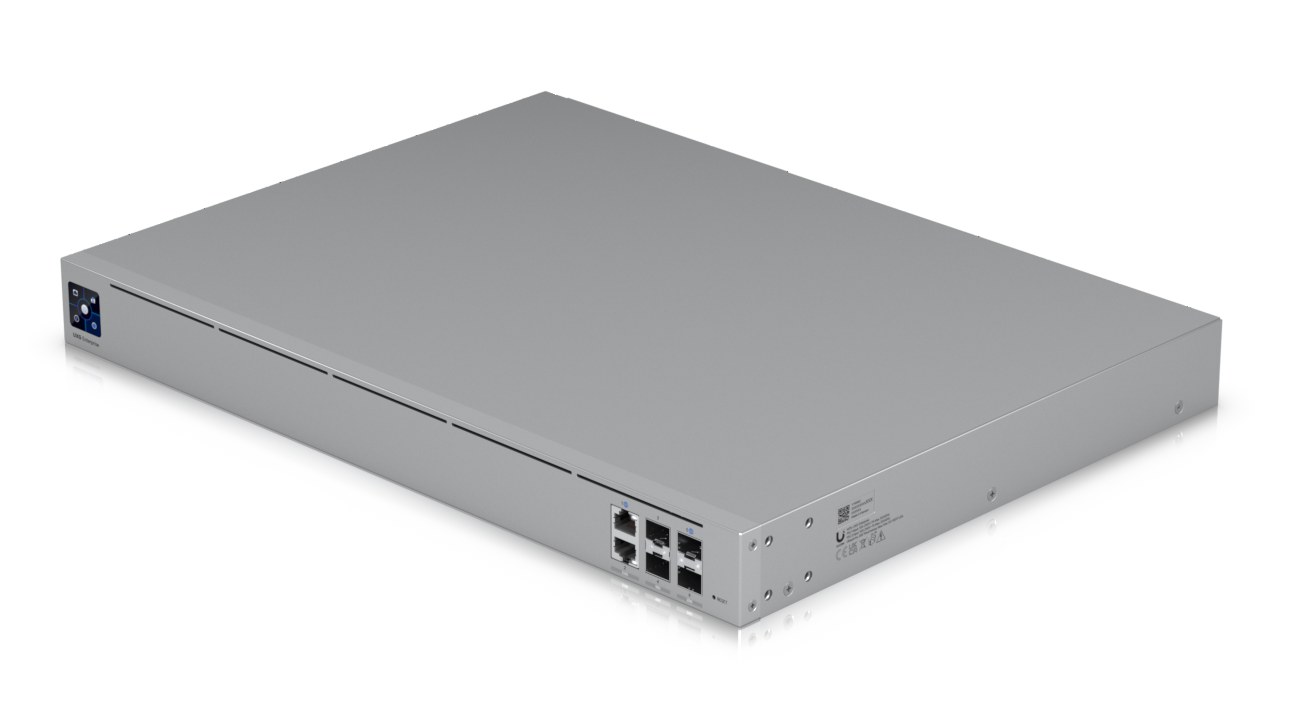

Enterprise Fortress Gateway

25G Cloud Gateway with 500+ UniFi device / 5,000+ client support, 12.5 Gbps IPS routing, and complete high availability.

         Runs UniFi Network for full-stack network management

         Shadow Mode High Availability with automatic failover provides
         uninterrupted connectivity (VRRP)

12.5 Gbps routing with IDS/IPS

License-free, real-time inspection of encrypted packets

NeXT AI Inspection (SSL/TLS decryption)

(2) 25G SFP28, (2) 10G SFP+, and (2) 2.5 GbE RJ45

(2) interfaces remappable to WAN

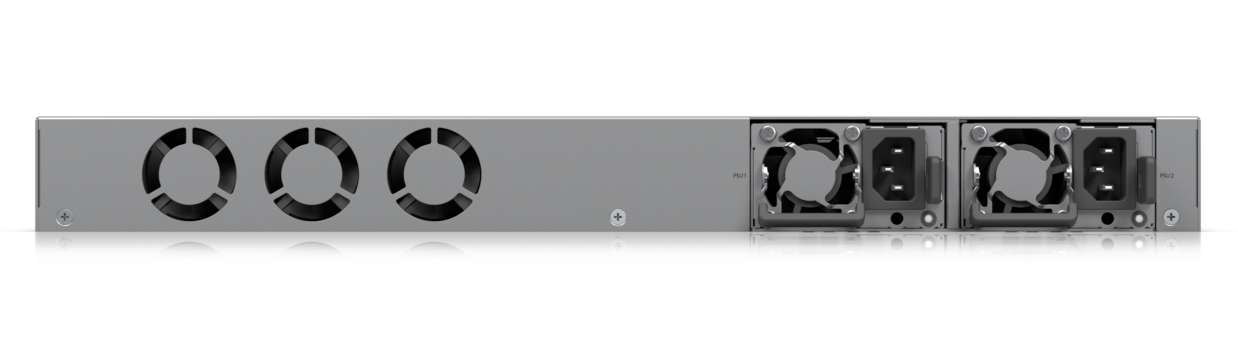

(2) included hot-swap PSUs for power redundancy

500+

Unifi Devices

Concurrent Sessions

5000+

Client Devices

71,000

New Sessions/Sec

10,000

SSL/TLS Inspection Concurrent Sessions

IDS/IPS Signatures

Routing Throughput

Firewall 23.5 Gbps

IDS/IPS 12.5 Gbps

*Measured with iPerf3 on DHCP WAN. Performance may be reduced with PPPoE depending on ISP implementation.

VPN Server Single User Throughput

Unifi Identity 1.2 Gbps

Teleport 1.2 Gbps

WireGuard 1.2 Gbps

OpenVPN 210 Mbps

L2TP 280 Mbps

*Measured with iPerf3.

Site-to-Site VPN Single Tunnel Throughput

Site Magic 1.1 Gbps

OpenVP 120 Mbps

IPsec 580 Mbps

*Measured with iPerf3.

VPN Client Single Tunnel Throughput

Wire Guard 980 Mbps

OpenVPN 180 Mbps

*Measured with iPerf3.

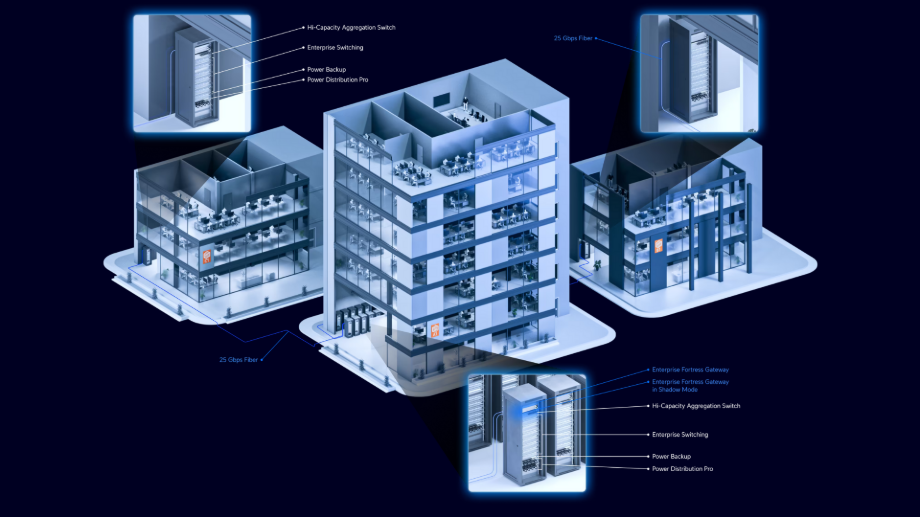

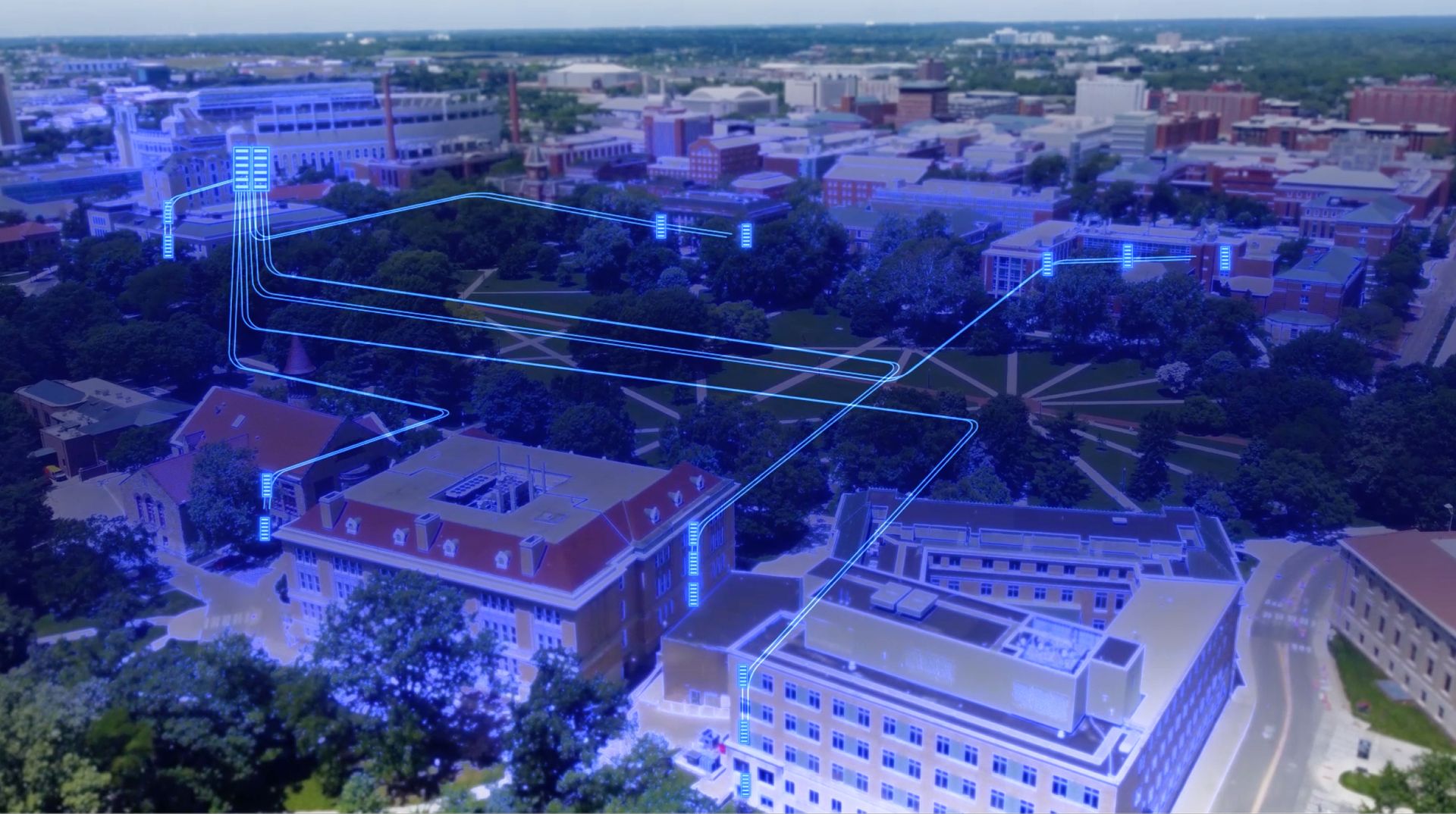

DEPLOYMENT

Ready to transform your network with EFG?

Ready to fortify your network? Contact Us!

ENTERPRISE WIFI 7 LINEUP

ENTERPRISE 7

Powerful 10-stream WiFi 7 performance with a 10GbE uplink and a redundant GbE port for high availability.

Real Time Spectral Analysis

6GHz Extended Range Mode

10-Stream WiFi 7 with 6 GHz Support

Up to 185 m² (2,000 ft²) Coverage

1,000+ Connected Devices

10 GbE PoE++ Uplink

ENTERPRISE 7 CAMPUS

With rugged IP67-rated durability and advanced PRISM™ active RF filtering technology reducing adjacent interference by 1,000+ times, experience exceptional WiFi performance even in the most challenging interference environments.

Rugged IP67 Durability

PRISM™ Active RF Filtering Technology

6GHz Extended Range Mode

10-Stream WiFi 7 With 6 GHz Support

Directional High Gain Antenna Array

10 GbE PoE++ Uplink

ENTERPRISE 7 AUDIENCE

Our most powerful WiFi access point yet, featuring 12 spatial streams and a built-in antenna array that delivers customizable beam widths—ideal for high-density environments like events and stadiums.

Rugged IP67 Durability

PRISM™ Active RF Filtering Technology

6GHz Extended Range Mode

12-Stream WiFi 7 With 6 GHz Support

Directional High Gain Antenna Array

10 GbE PoE++ Uplink

BUILT FOR ENTERPRISE PERFORMANCE
Incredible 1,000+ Client Capacity | Adjustable Beam Width | IP67 Rated | 10 GbE PoE Connectivity | Long-Range 6 GHz Performance with AFC

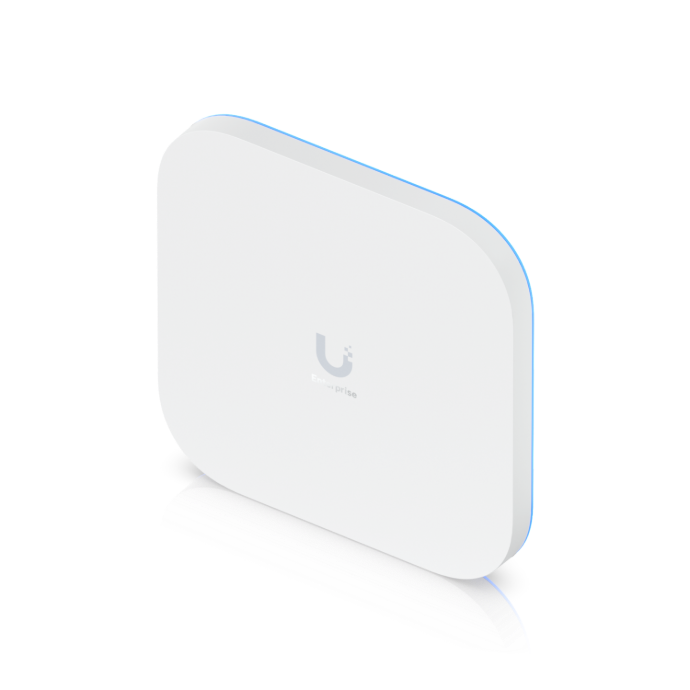

Enterprise 7

Tri-Band Radio: supports 6GHz
10 - Spatial Streams
6 GHz Extended Range Mode
Dedicated Spectral Scanning Radio
Antenna Type: Omnidirectional
Coverage: 185 m² (2,000 ft²)
Connected Devices: 1000+
Power Method: PoE++
Uplink: 10 GbE

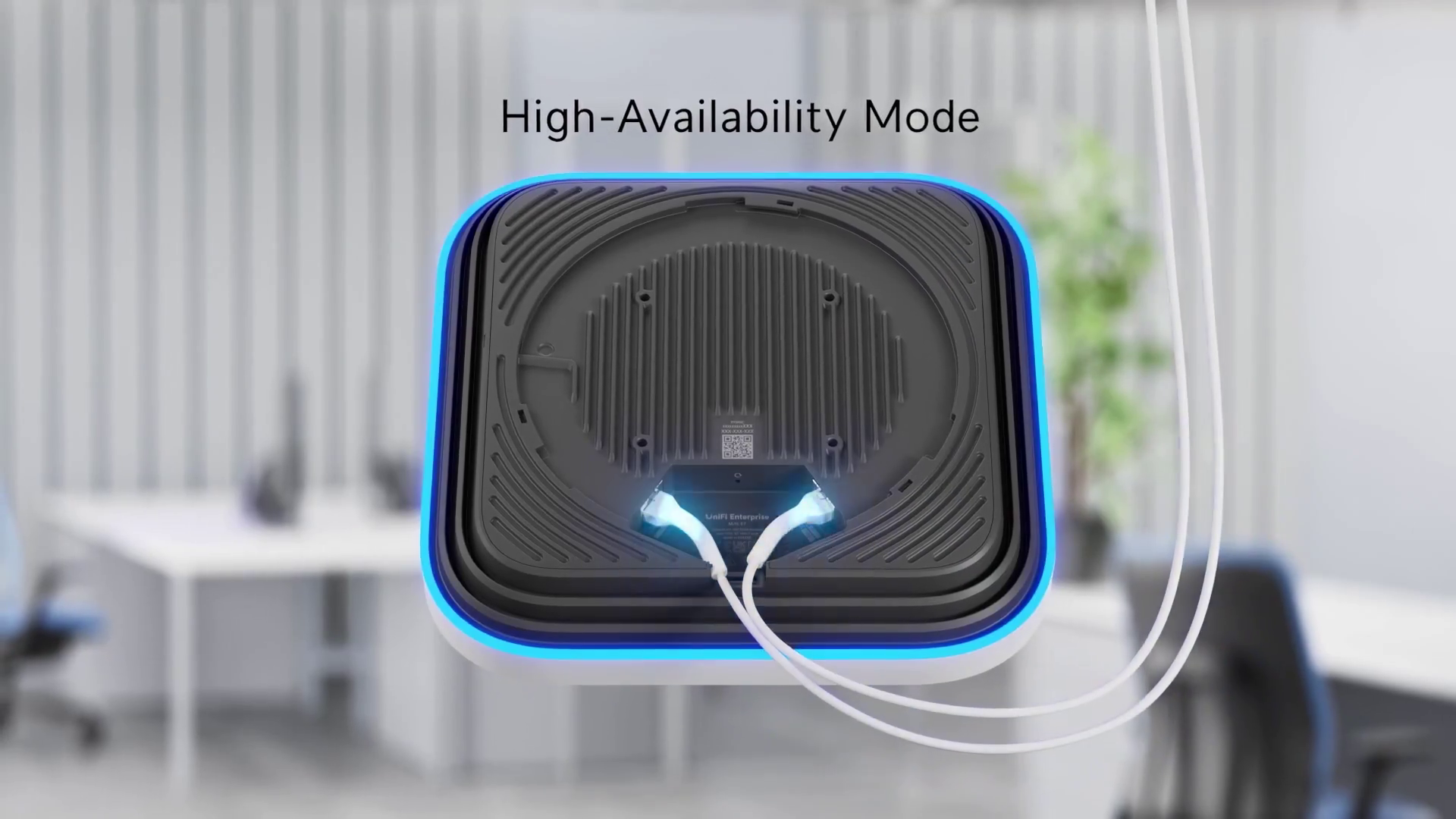

Redundant RJ45 port for High Availability
Mounting: Wall & Ceiling
Compatible with UniFi Pro Mounting

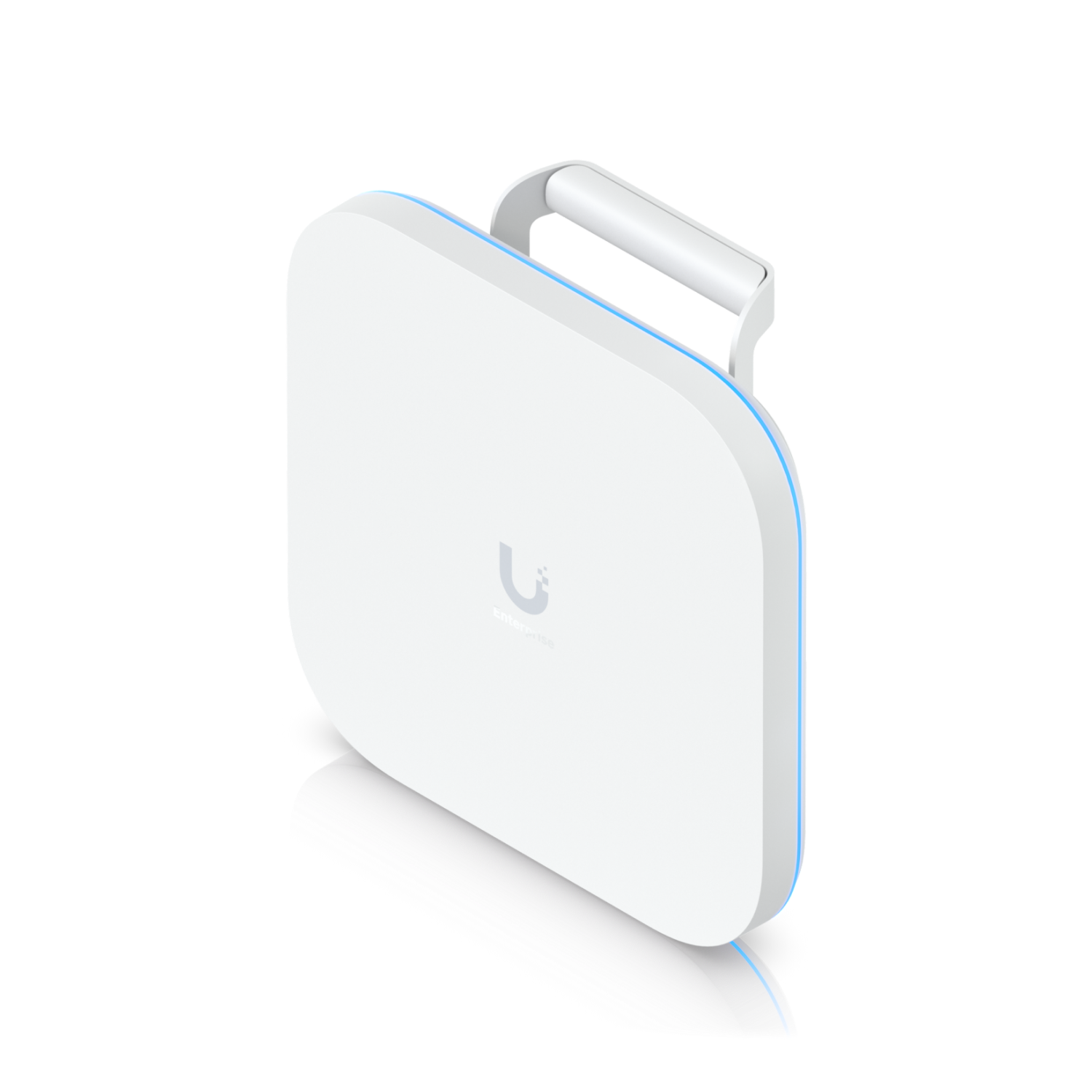

Enterprise 7 Campus

Tri-Band Radio: supports 6GHz
10 - Spatial Streams
6 GHz Extended Range Mode
Dedicated Spectral Scanning Radio
High Selectivity PRISM™ RF Filtering Technology
Antenna Type: Directional
Coverage: 465 m² (5,000 ft²)
Connected Devices: 1000+
IP67 Weatherproofing
Power Method: PoE++
Uplink: 10 GbE
Redundant RJ45 port for High Availability
Mounting: Wall, Pole, and Ceiling

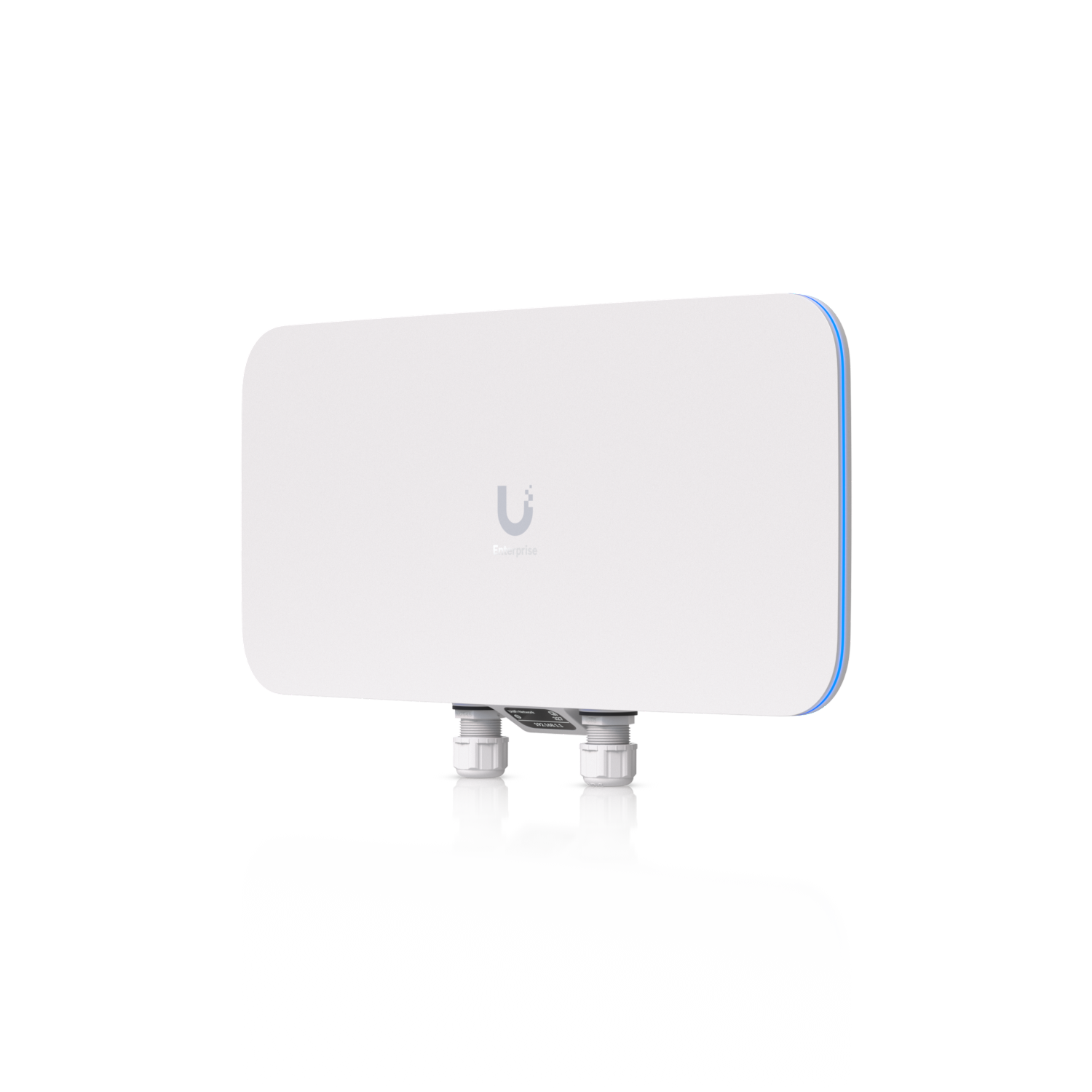

Enterprise 7 Audience

Tri-Band Radio: supports 6GHz
12 - Spatial Streams
6 GHz Extended Range Mode
Dedicated Spectral Scanning Radio
High Selectivity PRISM™ RF Filtering Technology
Antenna Type: Selectable Directional
Beamforming Antenna (15 dBi, 50° or 10 dBi, 90°)
allows for cell size optimization
Coverage: 465+ m² (5,000+ ft²) open space
Connected Devices: 1500+
IP68 Weatherproofing (US & CA Version only)
Power Method: PoE++
Uplink: 10 GbE
Redundant RJ45 port for High Availability
Mounting: Wall, Pole, and Ceiling

Ready to transform your network with UniFi Enterprise 7?

Secure your enterprise. Let's talk solutions.

100G, MC-LAG, and Beyond

High Capacity

Automatic Failover

Layer 3 (VRRP)

PoE Type

Up to PoE+++

PoE Availability

Up to 2,150 W

Performance

Switching Capacity

Up to 3.6 Tbps

RJ45 Ports Speeds

Up to 10 Gbps

SFP Port Speeds

Up to 100 Gbps

High Availability

MC-LAG

Supported

Power Redundancy

Dual power modules

Modular Fans

Hot-swappable

New UniFi Enterprise Campus Switching Family

Deployment

Comparison

Enterprise Campus 24 PoE

Port Count: 24
Download Link Speed: up to 10 Gbps
Uplink Speed: 25 Gbps
PoE Output: PoE+++
PoE Availability: 1050W
Etherlighting™
Dual hot-swappable PSUs

Enterprise Campus 48 PoE

Port Count: 48
Download Link Speed: up to 10 Gbps
Uplink Speed: 25 Gbps
PoE Output: PoE+++
PoE Availability: 2150W
Etherlighting™
Dual hot-swappable PSUs

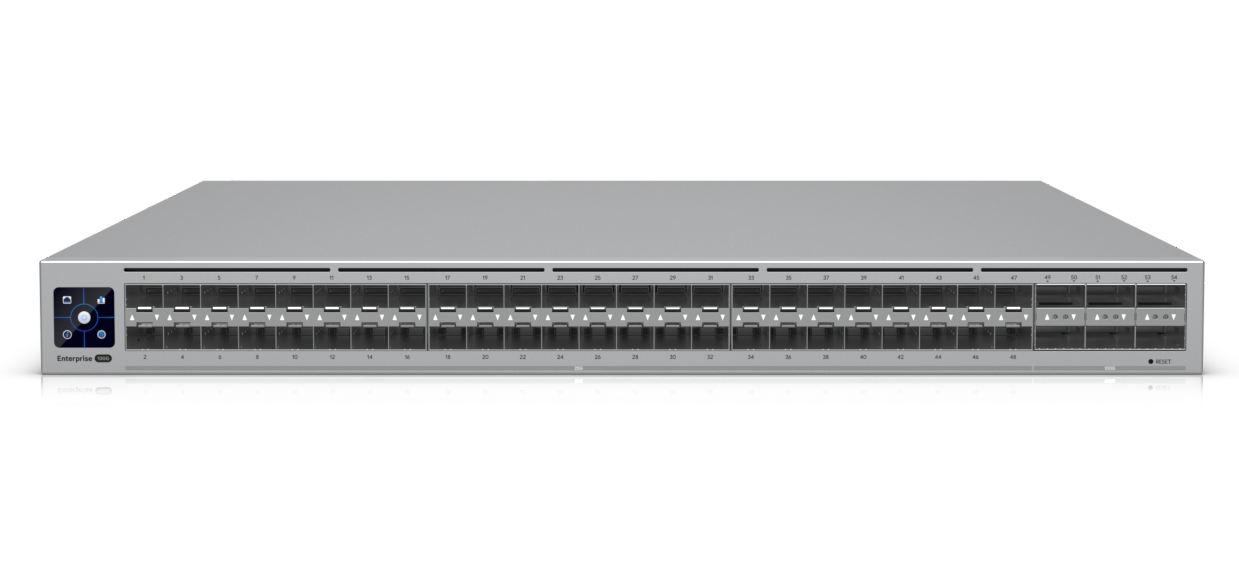

Enterprise Campus Aggregation

Port Count: 48
Download Link Speed: up to 10 Gbps
Uplink Speed: 100 Gbps
Etherlighting™
Dual hot-swappable PSUs

Accessories

Fans
Power Supply Units

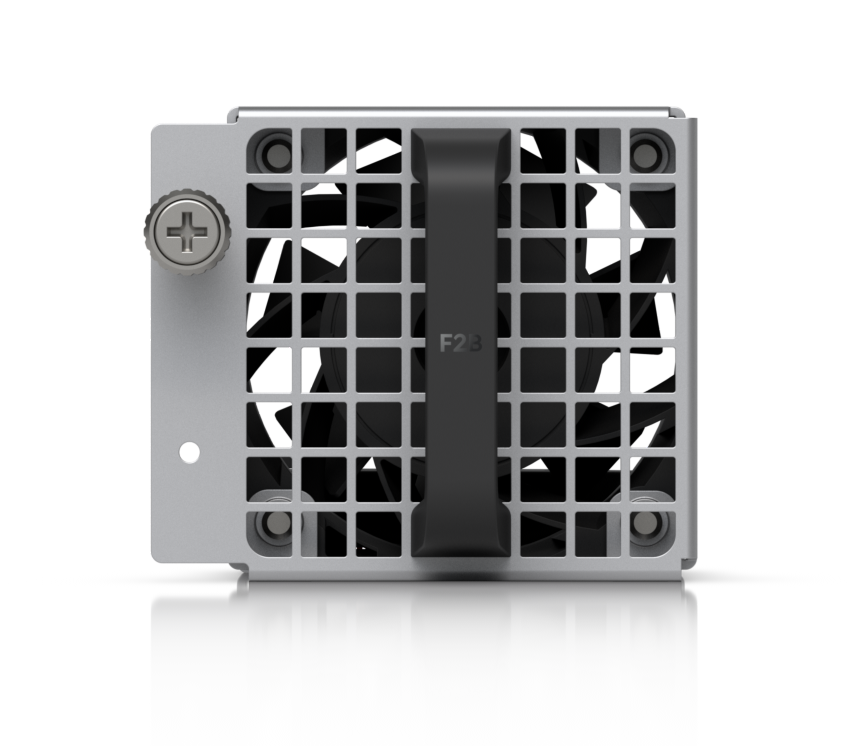

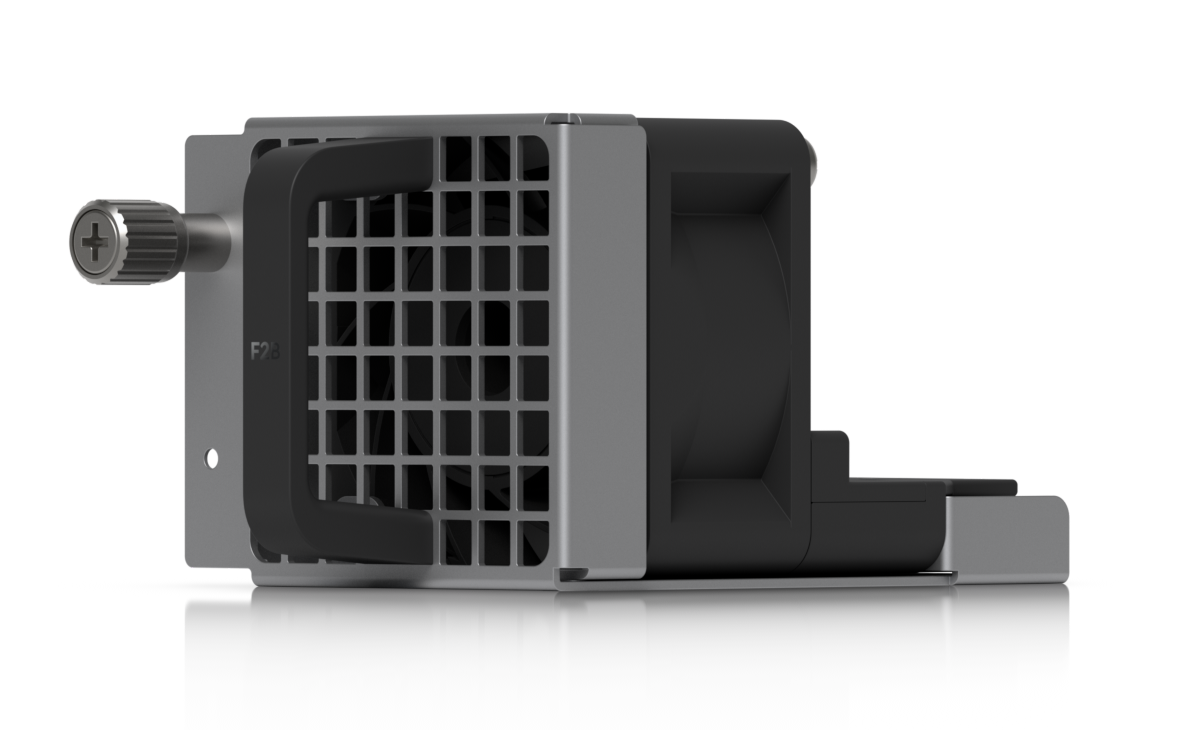

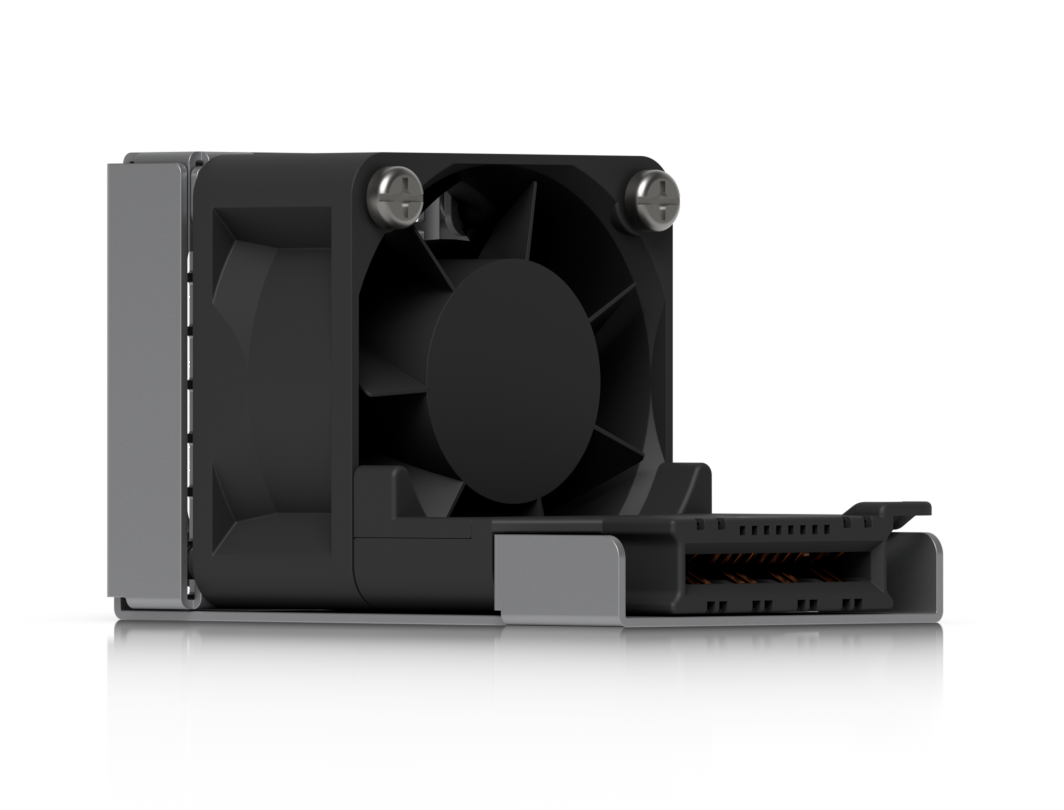

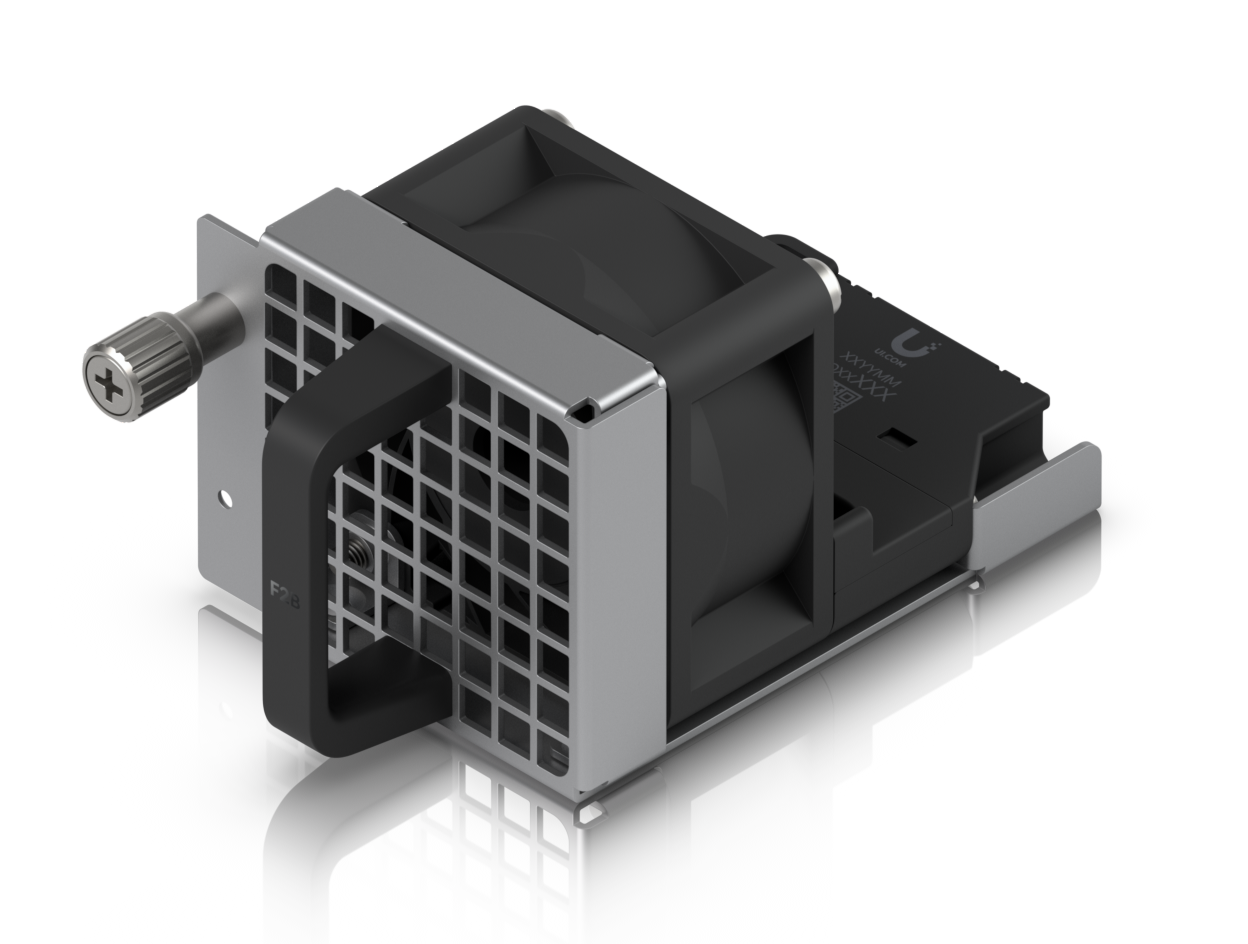

Hot-Swappable Fan Module

UACC-Fan-F2B-4020

Keep your UniFi Gateway or Switch Pro running cool and reliable with the UACC-FAN. This hot-swappable fan provides an essential redundant cooling solution, ensuring optimal performance and preventing downtime by automatically taking over if a primary fan fails. It's an easy way to boost the longevity and stability of your critical network hardware.

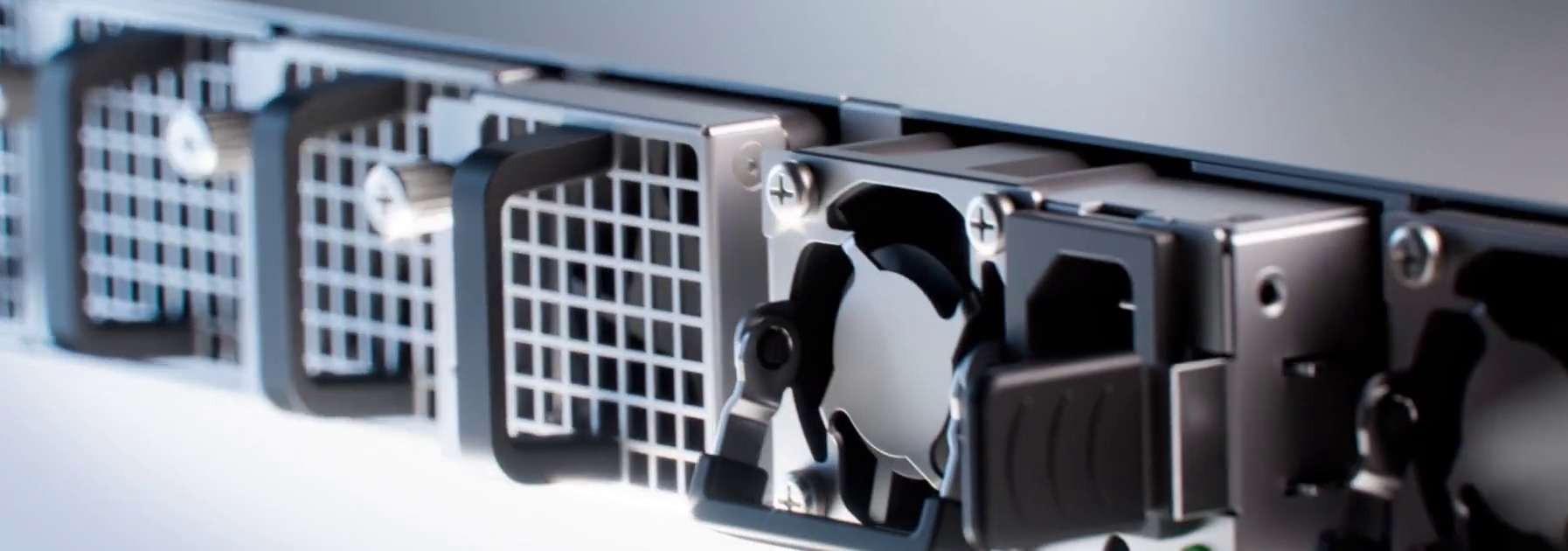

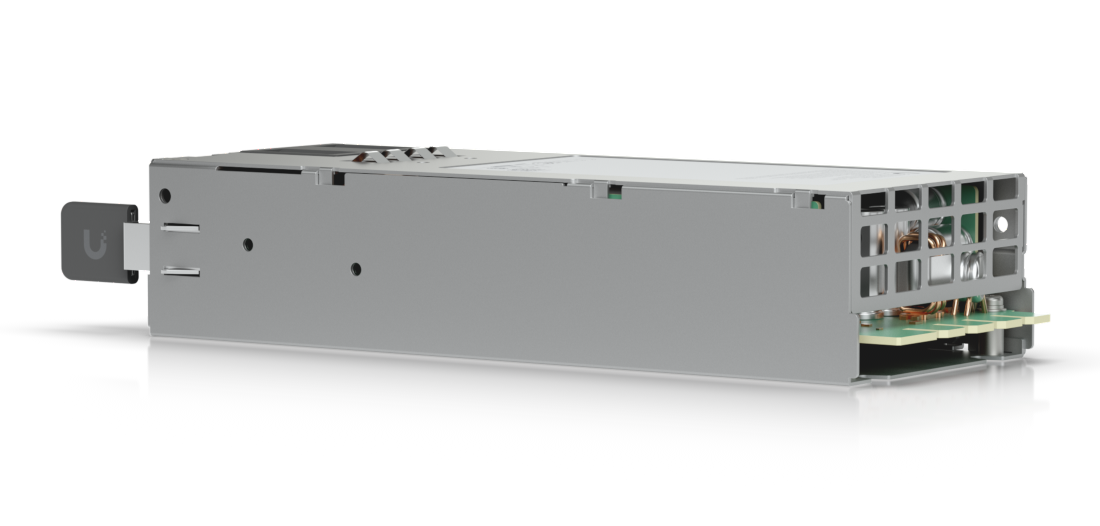

Hot-Swappable Power Module (600W)

UACC-PSU-54V-600W

Ensure maximum uptime for your UniFi Enterprise deployments with the UniFi Hot-Swappable Power Module (600W). This module provides 600W of reliable, redundant power, allowing for uninterrupted service during installation or replacement. It's crucial for maintaining continuous operation of your critical UniFi enterprise infrastructure.

Hot-Swappable Power Module (1200W)

UACC-PSU-54V-1200W

Achieve uninterrupted power and maximum uptime for your high-demand UniFi Enterprise deployments with the UniFi Hot-Swappable Power Module (1200W). This module delivers a robust 1200W of redundant power, ensuring seamless operation for your critical UniFi enterprise-grade devices even during module installation or replacement. It's an indispensable component for resilient enterprise infrastructure.

Great stories have a personality. Consider telling a great story that provides personality. Writing a story with personality for potential clients will assist with making a relationship connection. This shows up in small quirks like word choices or phrases. Write from your point of view, not from someone else's experience.

Great stories are for everyone even when only written for just one person. If you try to write with a wide, general audience in mind, your story will sound fake and lack emotion. No one will be interested. Write for one person. If it’s genuine for the one, it’s genuine for the rest.

Add Images

Ready to transform your network with UniFi Enterprise Switches?

Enhance your network performance with Ubiquiti Enterprise Switches.

UniFi Flexibility for MSPs

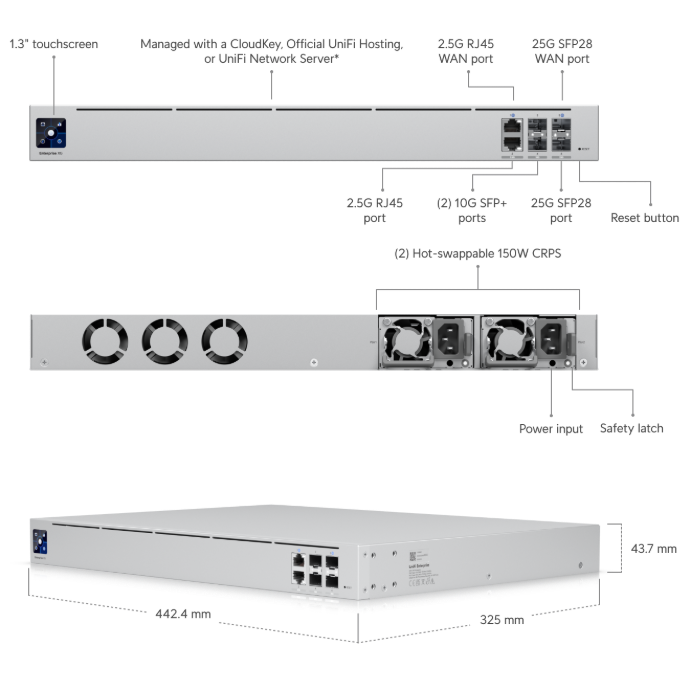

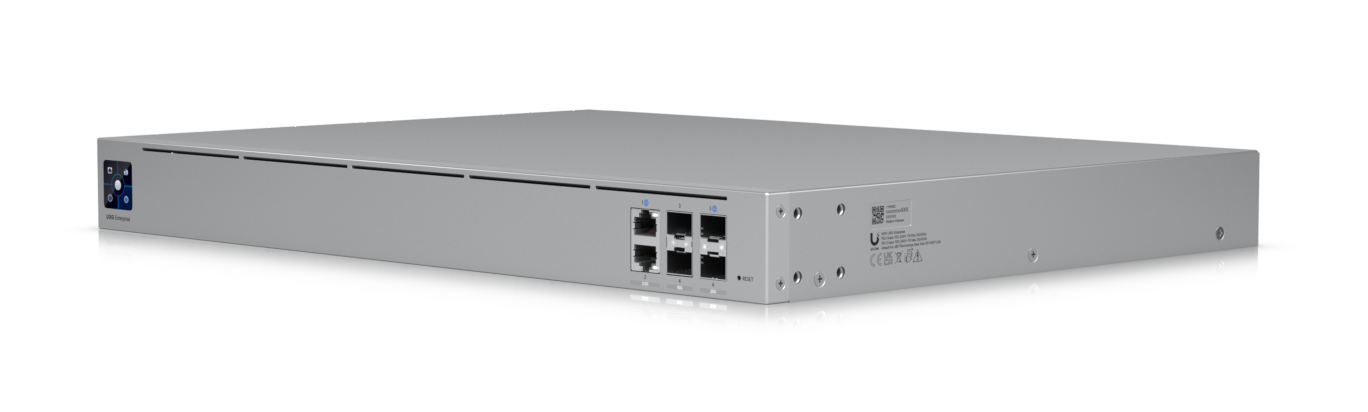

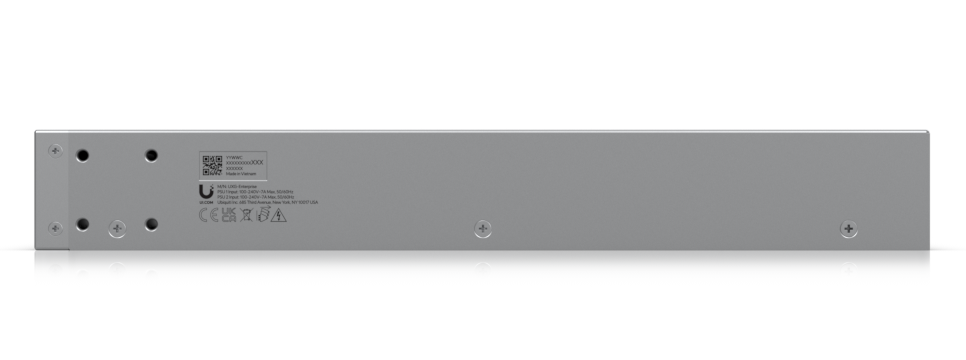

Gateway Enterprise

25G Cloud Gateway with 500+ UniFi device / 5,000+ client support, 12.5 Gbps IPS routing, and complete high availability.

Managed with a CloudKey, Official UniFi Hosting, or UniFi Network Server with UniFi Network 8.3.32 and later

         12.5 Gbps routing with IDS/IPS

         License-free, real-time inspection of encrypted packets            with NeXT AI Inspection (SSL/TLS decryption)

  (2) 25G SFP28, (2) 10G SFP+, and (2) 2.5 GbE RJ45         ports (two interfaces remappable to WAN)

        (2) included hot-swap PSUs for power redundancy

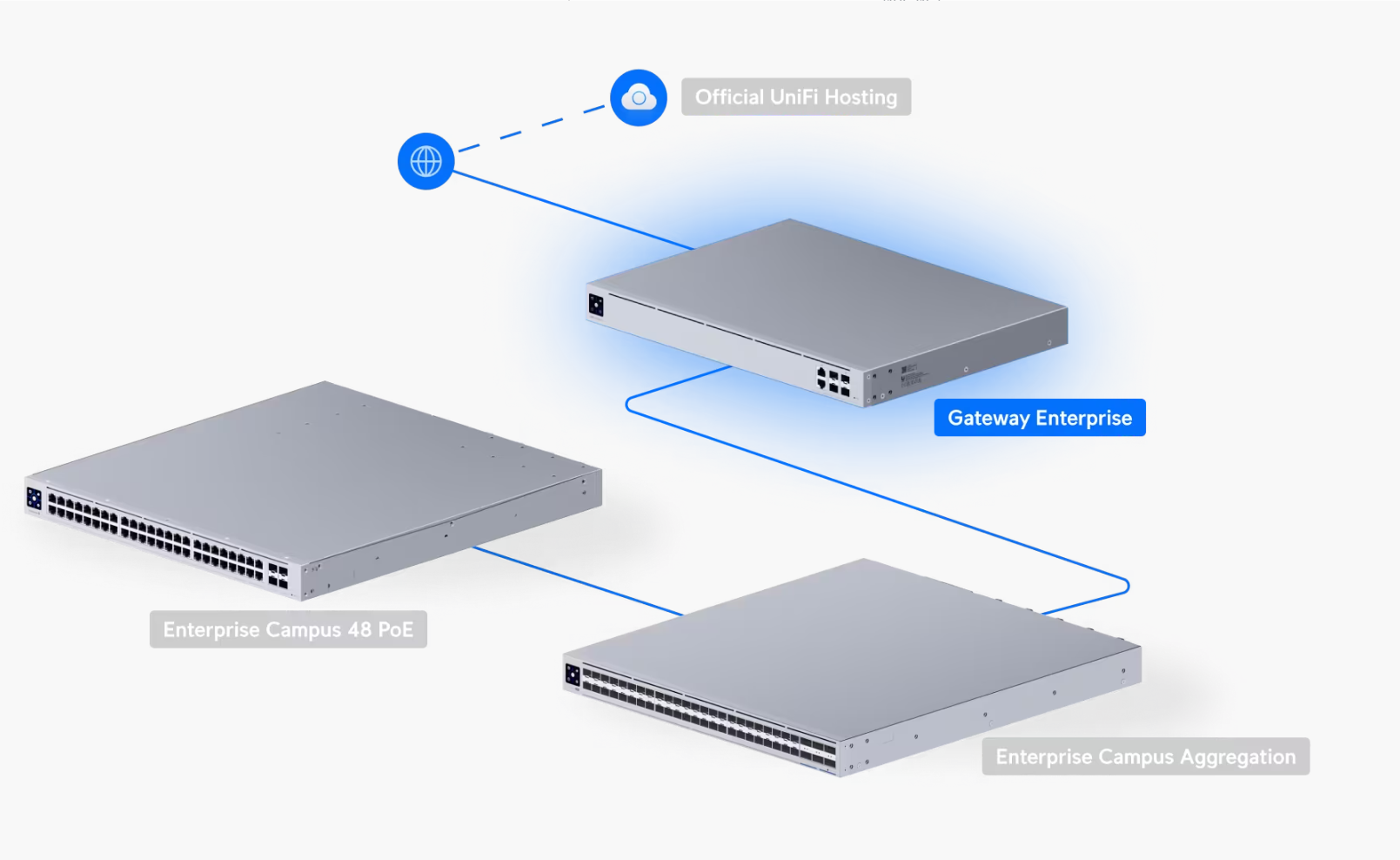

Deployment

Ready to transform your network with UniFi Enterprise Gateways?

Secure and optimize your network with Ubiquiti Gateways.

Lightning-Fast Local Storage

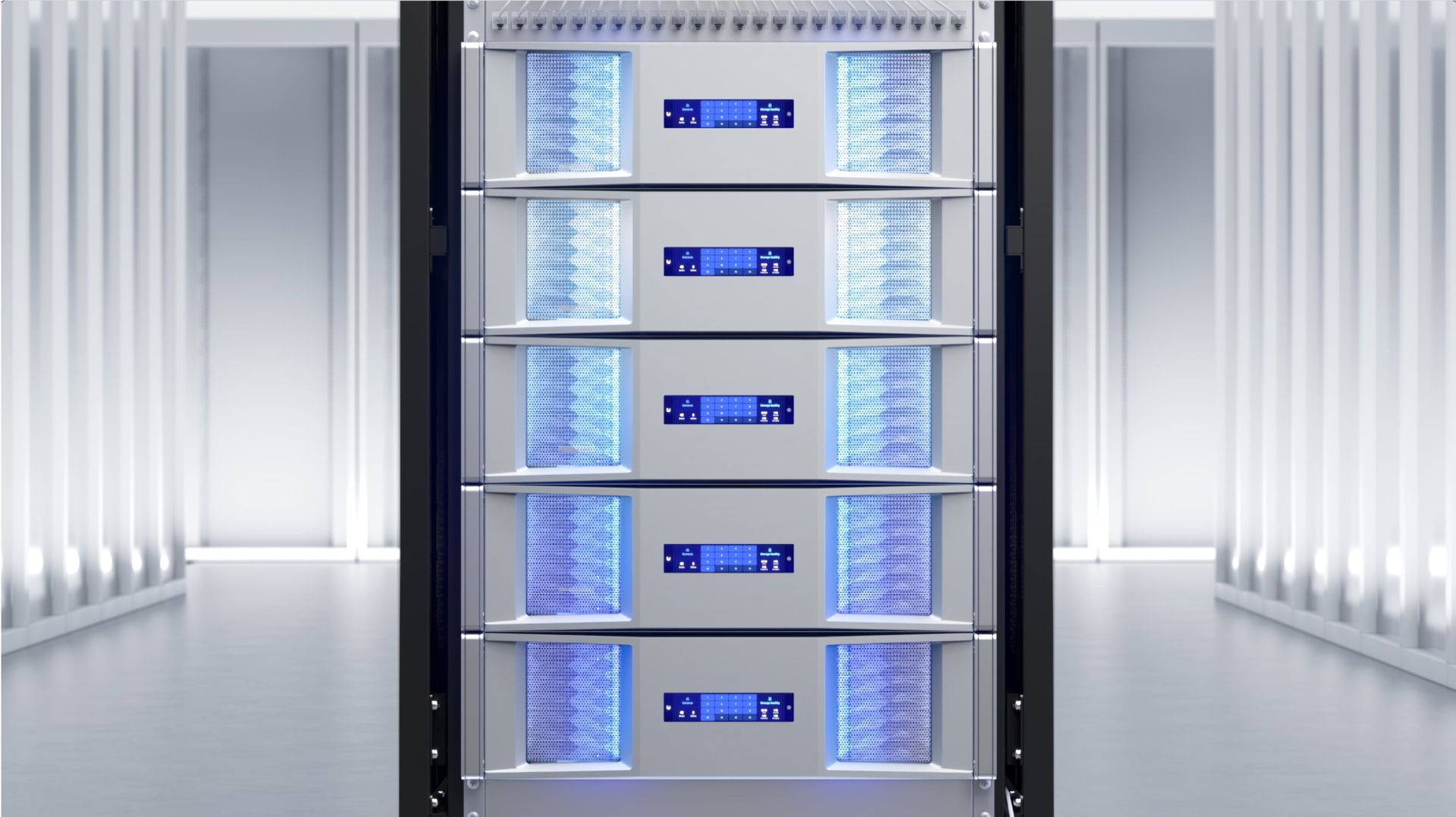

Enterprise Scalability

Vantage Point

License-Free Management

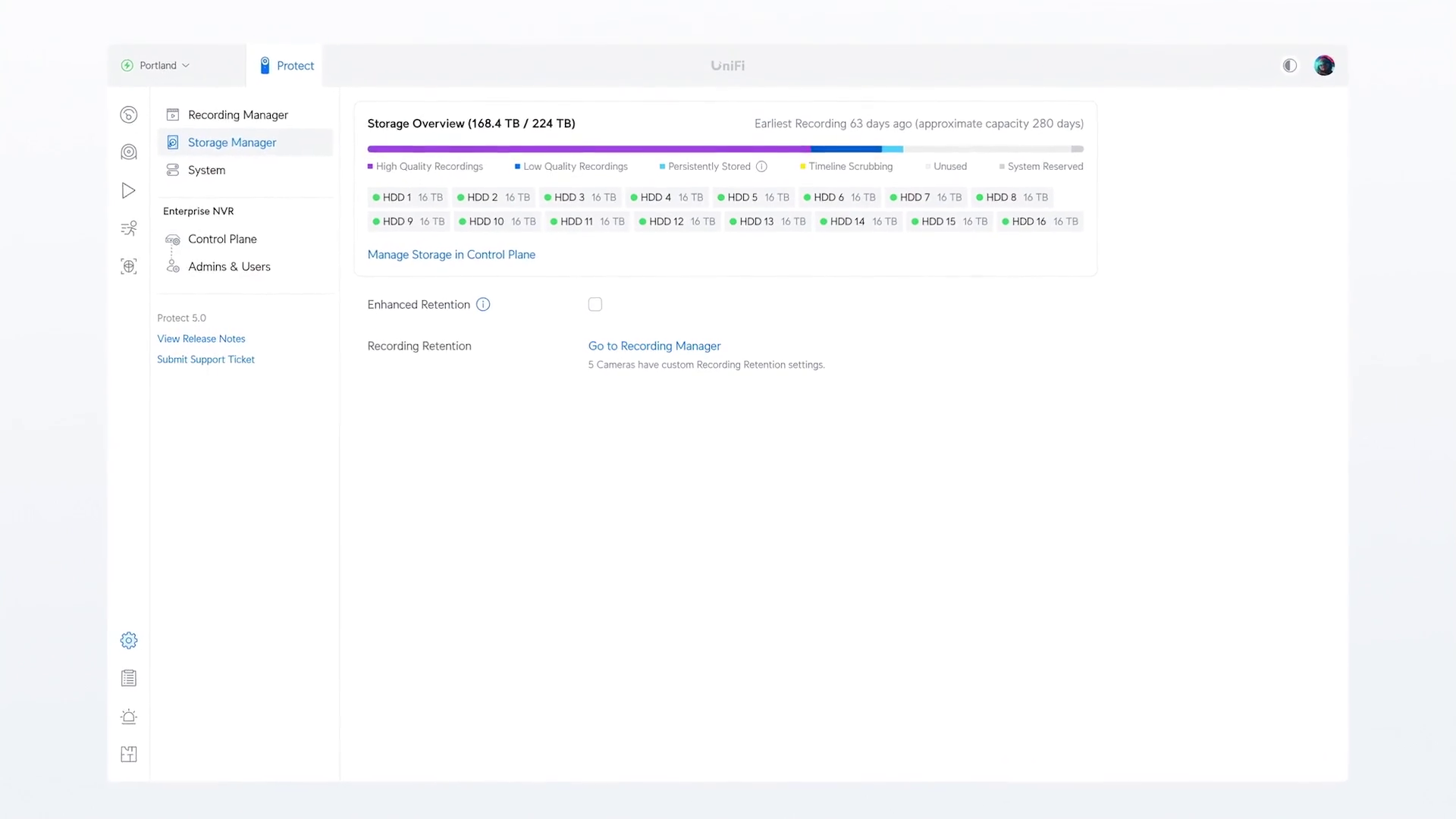

Local Storage for Recording Privacy

Up to 16 3.5" HDD / SSD Bays

RAID Data Protection

(2) Hot-Swappable PSUs For Power Redundancy

Deploy 1,000+ Cameras with Enterprise NVR and Vantage Point Scaling

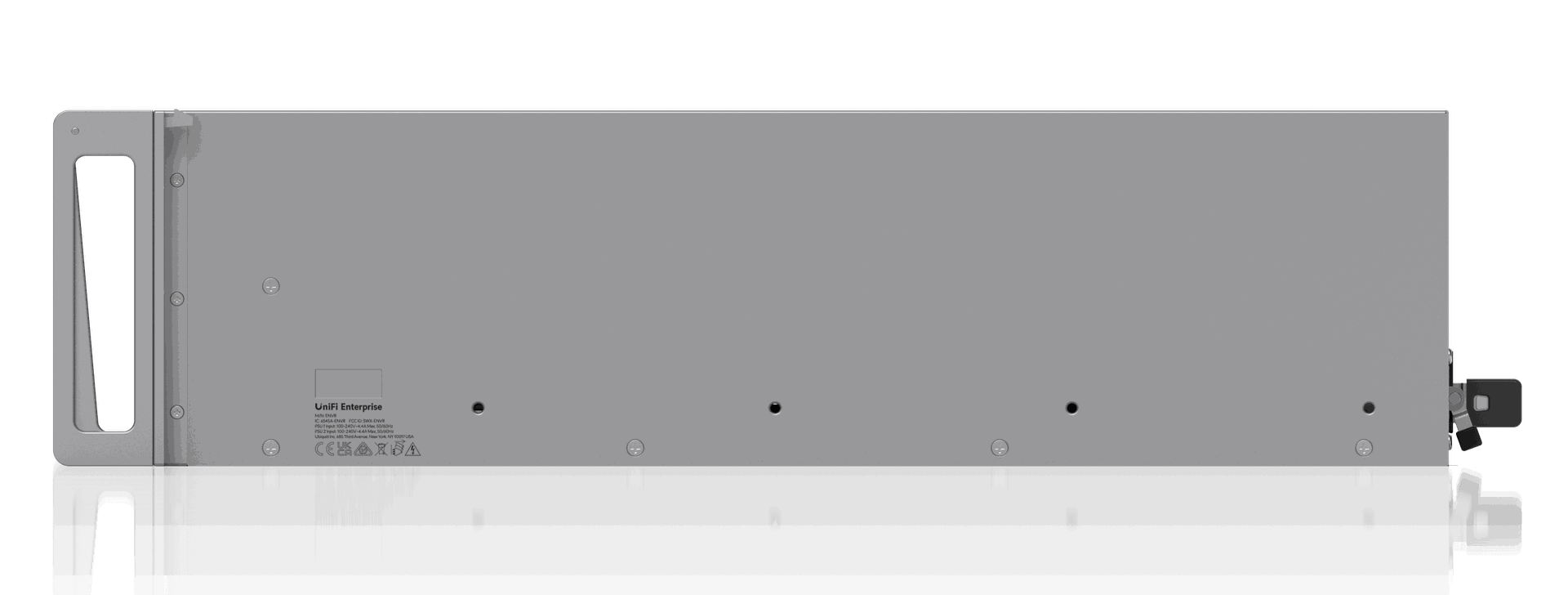

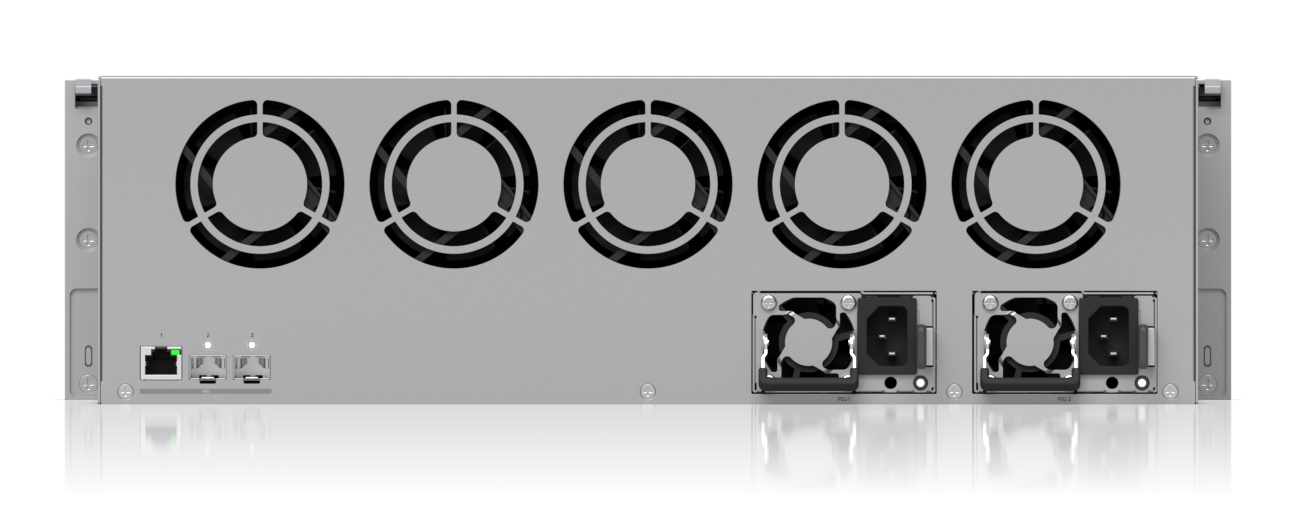

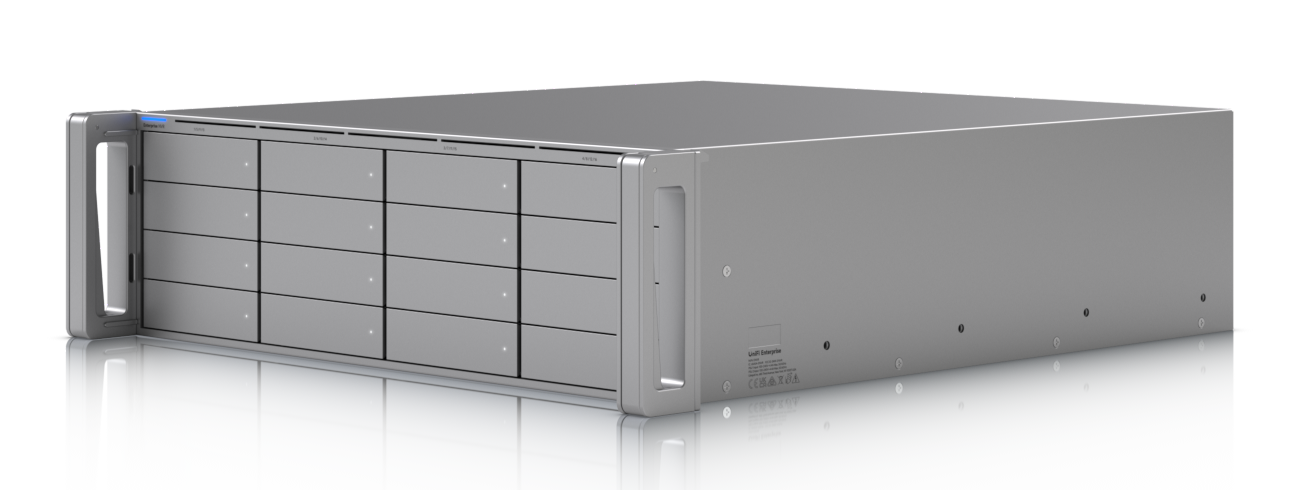

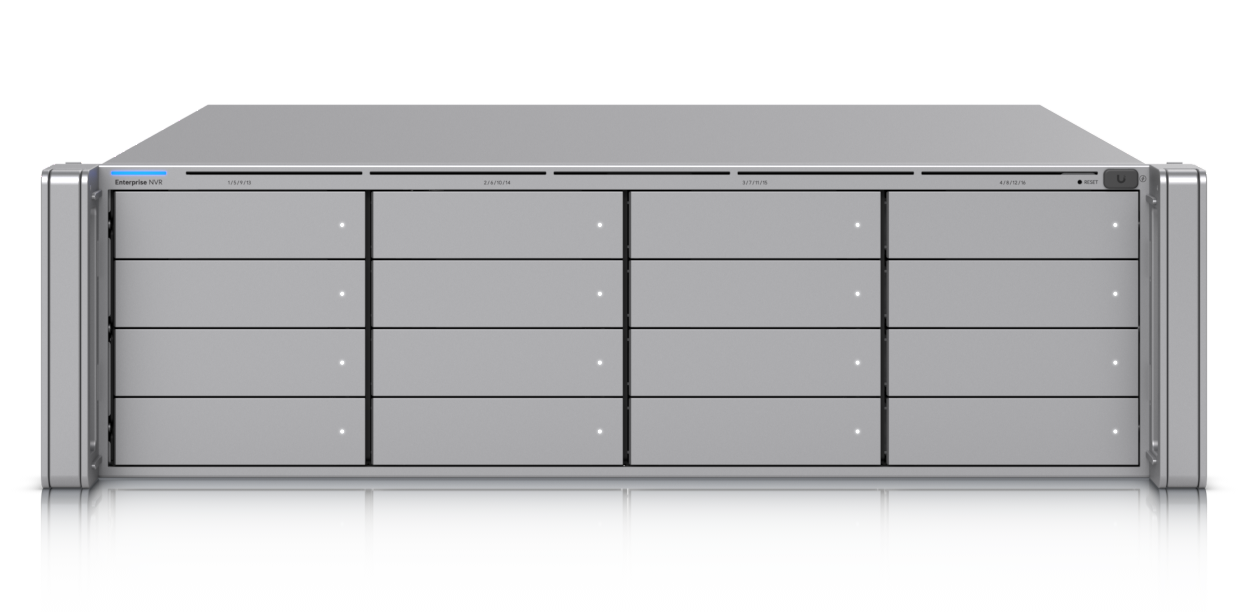

Enterprise NVR

Enterprise scalability and redundancy ideal for large organizations

FEATURES

Managed Cameras: (210) HD; (140) 2K; (70) 4K

Storage Capacity: (16) 3.5" drive bays
Data Protection: RAID Data Redundancy
Drive Hot-Swap
Vantage Point: combine multiple NVRs
Networking Interface: (2) 10G SFP+; (1) 10 GbE
Power Redundancy: (2) Hot-swap PSUs
Form Factor: 3U rack-mountable
Door Access Support

Accessories

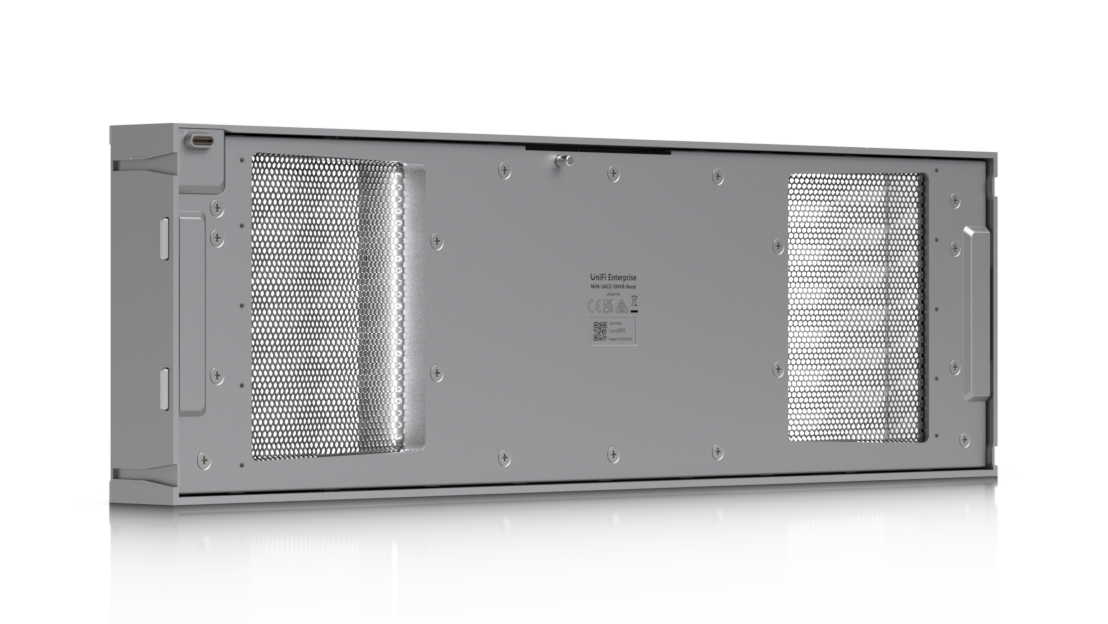

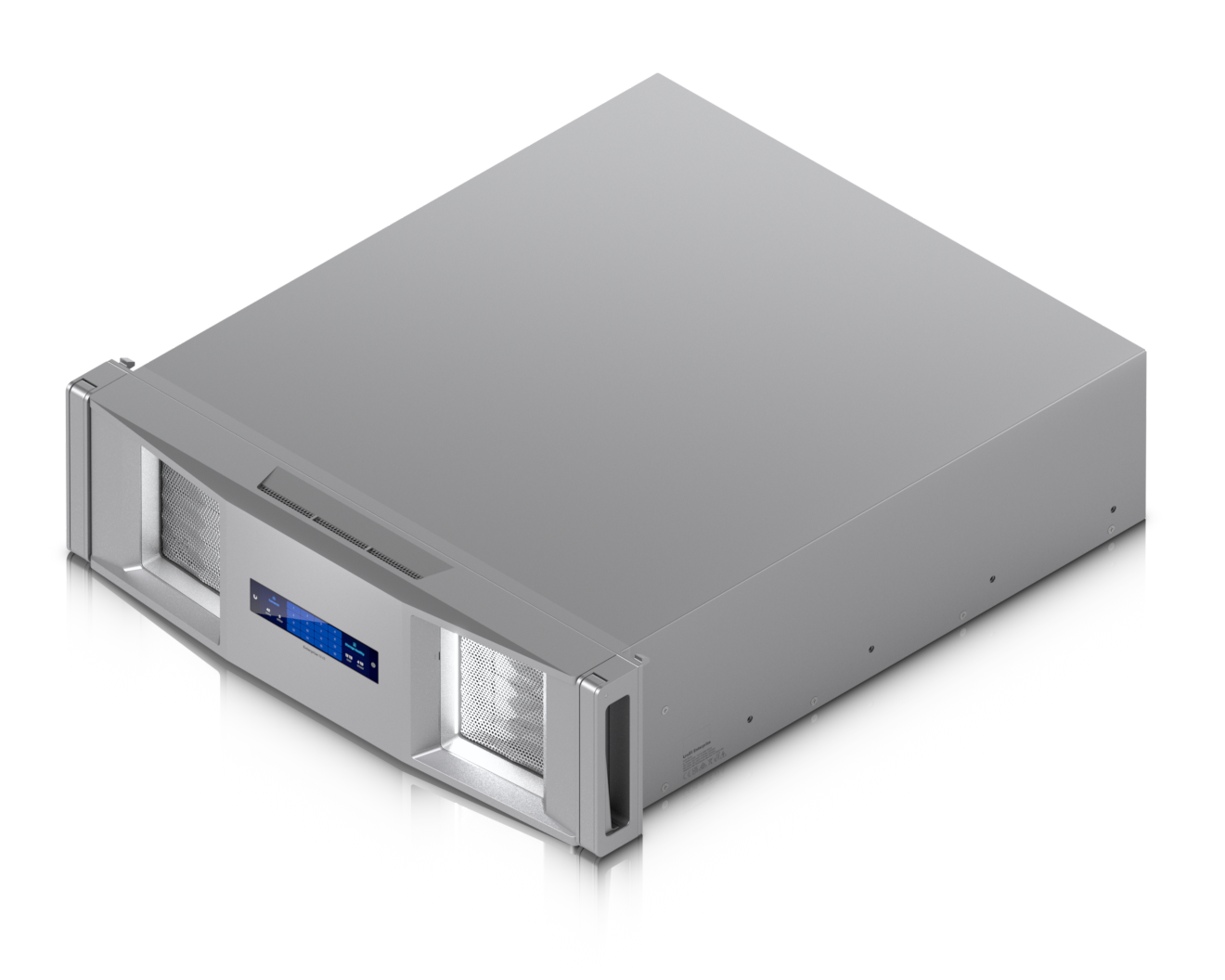

ENVR Bezel

Upgrade your UniFi ENVR with the official Bezel Accessory. This faceplate adds a 4.7" touchscreen for direct disk management and live camera feeds, alongside secure physical disk access and LED status illumination. Get enhanced control and security, right from your rack.

Ready to transform your network with UniFi ENVR?

Ensure comprehensive security with Ubiquiti Enterprise Network Video Recorders.
